Harley-Davidson CVO Street Glide Limited FLHXSE 2026 vs. Harley-Davidson Street Glide Ultra 2025

Technical Specifications Harley-Davidson CVO Street Glide Limited FLHXSE 2026 compared to Harley-Davidson Street Glide Ultra 2025

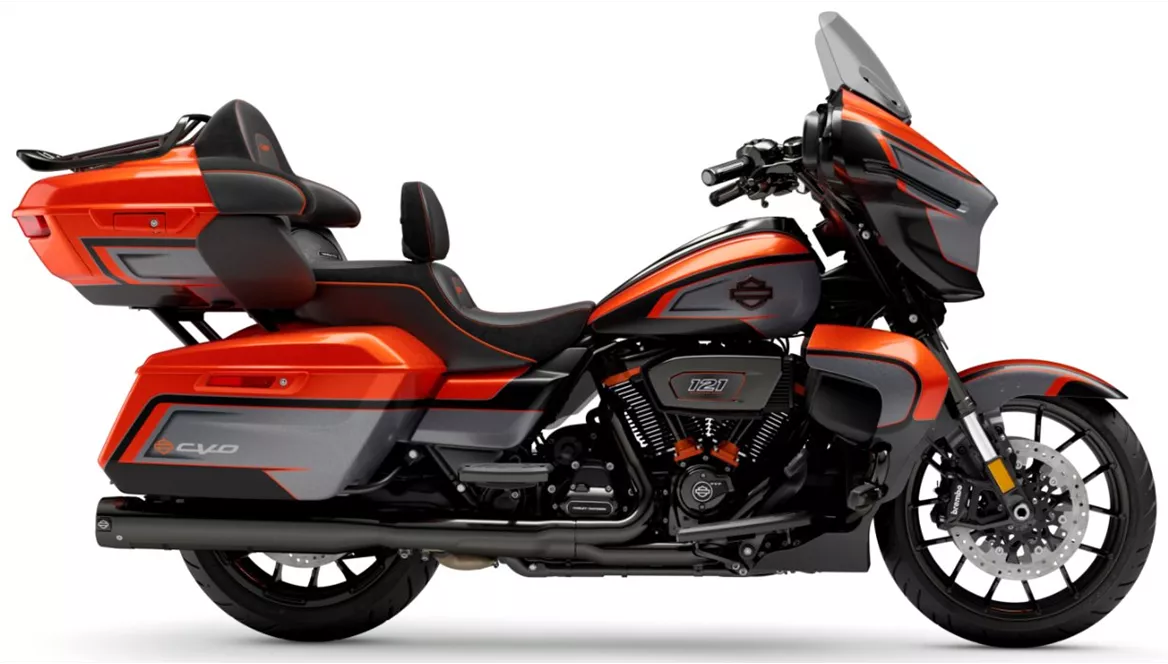

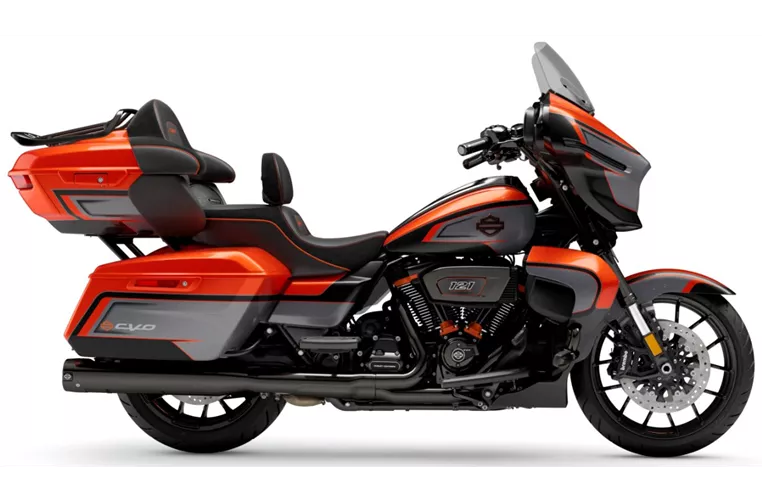

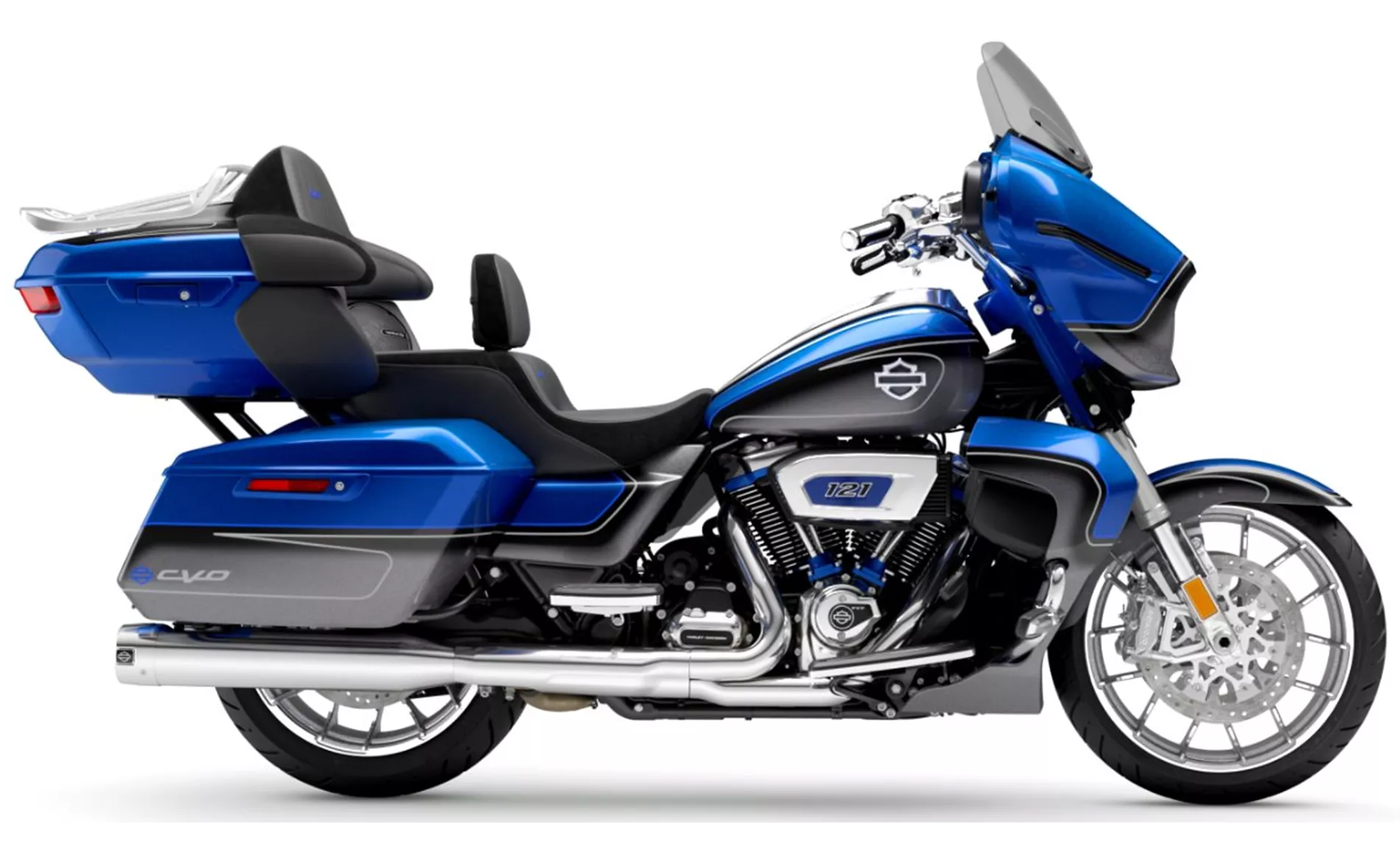

Harley-Davidson CVO Street Glide Limited FLHXSE 2026

Harley-Davidson Street Glide Ultra 2025

Show all

Same only

Differences

Harley-Davidson CVO Street Glide Limited FLHXSE 2026

Harley-Davidson Street Glide Ultra 2025

Engine and Drive Train

Engine type	Engine type	V	Engine type	V
Bore	Bore	103.5 mm	Bore	103.5 mm
Stroke	Stroke	117.5 mm	Stroke	114.3 mm
Engine power	Engine power	117 HP	Engine power	109 HP
Rpm at Max. Power	Rpm at Max. Power	5,020 rpm	Rpm at Max. Power	5,020 rpm
Torque	Torque	183 Nm	Torque	175 Nm
Rpm at Torque	Rpm at Torque	3,500 rpm	Rpm at Torque	3,500 rpm
Compression Ratio	Compression Ratio	11.4	Compression Ratio	10.3
Fuel system	Fuel system	Injection	Fuel system	Injection
Starter	Starter	Electric	Starter	Electric
Clutch Type	Clutch Type	Multiplate in oil-bath	Clutch Type	Multiplate in oil-bath
Ignition	Ignition	Digital	Ignition	Transistor
Transmission	Transmission	Belt	Transmission	Belt
Transmission Type	Transmission Type	Gearshift	Transmission Type	Gearshift
Number of gears	Number of gears	6	Number of gears	6
Cylinders	Cylinders	2	Cylinders	2
Strokes	Strokes	4-Stroke	Strokes	4-Stroke
Valves per cylinder	Valves per cylinder	4	Valves per cylinder	4
Valves	Valves	Hydraulic tappets	Valves	OHV
Cooling	Cooling	liquid-air	Cooling	liquid-air
Displacement	Displacement	1,977 ccm	Displacement	1,923 ccm

Suspension Front

Front suspension	Front suspension	Upside-Down telescopic fork	Front suspension	Telescopic fork
Diameter	Diameter	47 mm	Diameter	49 mm

Suspension Rear

Suspension	Suspension	Swing arm	Suspension	Swing arm
Shock absorber	Shock absorber	Dual Shock	Shock absorber	Dual Shock
Adjustment	Adjustment	Preload	Adjustment	Preload

Chassis

Frame	Frame	Steel	Frame	Steel
Rake	Rake	26 degree	Rake	64 degree
Trail	Trail	170 mm	Trail	170 mm

Brakes Front

Type	Type	Double disk	Type	Double disk
Piston	Piston	Four pistons	Piston	Four pistons

Brakes Rear

Type	Type	Disc	Type	Disc
Shock mount	Shock mount	Fixed caliper	Shock mount	Fixed caliper

Assistance Systems

Advanced Rider Assistance Systems	Advanced Rider Assistance Systems	ABS, Hill start assist, Combined Brake System, Tire pressure monitoring system, Traction control, Modern electronics, Comfort, Cornering traction control, Cornering ABS	Advanced Rider Assistance Systems	ABS, Hill start assist, Riding modes, Combined Brake System, Cornering ABS, Cruise control, Traction control

Dimensions and Weights

Front tyre width	Front tyre width	130 mm	Front tyre width	130 mm
Front tyre height	Front tyre height	60 %	Front tyre height	60 %
Front tyre diameter	Front tyre diameter	19 inch	Front tyre diameter	19 inch
Rear tyre width	Rear tyre width	180 mm	Rear tyre width	180 mm
Rear tyre height	Rear tyre height	55 %	Rear tyre height	55 %
Rear tyre diameter	Rear tyre diameter	18 inch	Rear tyre diameter	18 inch
Length	Length	2,625 mm	Length	2,590 mm
Width	Width	1,035 mm	Width	980 mm
Wheelbase	Wheelbase	1,625 mm	Wheelbase	1,625 mm
Seat Height	Seat Height	740 mm	Seat Height	725 mm
Fuel Tank Capacity	Fuel Tank Capacity	22.7 l	Fuel Tank Capacity	22.7 l
Range	Range	378 km	Range	378 km
Combined CO2 emissions	Combined CO2 emissions	140 g/km	Combined CO2 emissions	143 g/km
Combined fuel consumption	Combined fuel consumption	6 l/100km	Combined fuel consumption	6 l/100km

Equipment

Equipment	Equipment	Android Auto, Apple CarPlay, Bluetooth, Connectivity, Heated grips, Case system, LED-Headlights, Heated seat, Sound System, TFT display, USB-C socket, Touch display, Integrated navigation system, Modern electronics, Charging & power, Comfort, Connectivity, Lighting, Storage space, Windshield	Equipment	Apple CarPlay, Bluetooth, Connectivity, Case system, LED daytime running lights, LED-Headlights, Sound System, TFT display, Topcase
