Harley-Davidson Freewheeler 2024 vs. Harley-Davidson Freewheeler 2022

Technical Specifications Harley-Davidson Freewheeler 2024 compared to Harley-Davidson Freewheeler 2022

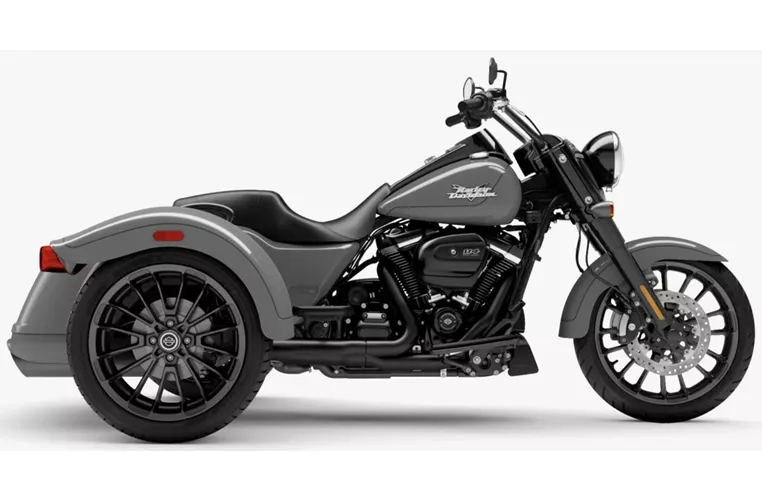

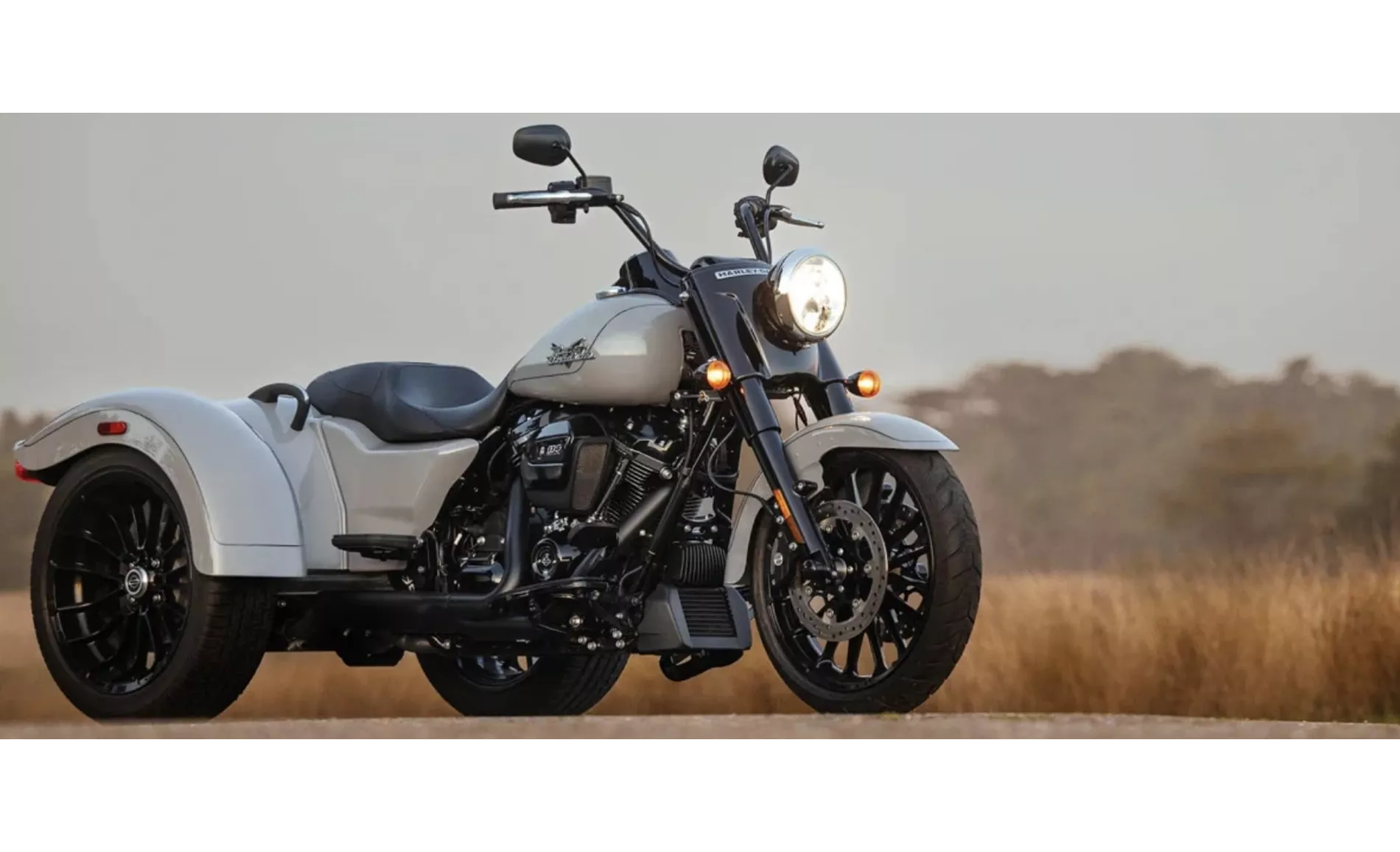

Harley-Davidson Freewheeler 2024

Harley-Davidson Freewheeler 2022

Show all

Same only

Differences

Harley-Davidson Freewheeler 2024

Harley-Davidson Freewheeler 2022

Engine and Drive Train

Engine type	Engine type	V	Engine type	V
Bore	Bore	102 mm	Bore	102 mm
Stroke	Stroke	114 mm	Stroke	114 mm
Engine power	Engine power	90 HP	Engine power	88 HP
Rpm at Max. Power	Rpm at Max. Power	4,750 rpm	Rpm at Max. Power	5,450 rpm
Torque	Torque	165 Nm	Torque	159 Nm
Rpm at Torque	Rpm at Torque	2,750 rpm	Rpm at Torque	3,250 rpm
Compression Ratio	Compression Ratio	10.5	Compression Ratio	10
Fuel system	Fuel system	Injection	Fuel system	Injection
Starter	Starter	Electric	Starter	Electric
Clutch Type	Clutch Type	Multiplate in oil-bath	Clutch Type	Multiplate in oil-bath
Ignition	Ignition	Transistor	Ignition	Transistor
Transmission	Transmission	Belt	Transmission	Belt
Transmission Type	Transmission Type	Gearshift	Transmission Type	Gearshift
Number of gears	Number of gears	6	Number of gears	6
Cylinders	Cylinders	2	Cylinders	2
Strokes	Strokes	4-Stroke	Strokes	4-Stroke
Valves	Valves	OHV	Valves	OHV
Cooling	Cooling	liquid	Cooling	liquid
Displacement	Displacement	1,868 ccm	Displacement	1,868 ccm

Suspension Front

Front suspension	Front suspension	Telescopic fork	Front suspension	Telescopic fork

Suspension Rear

Suspension	Suspension	Solid axle	Suspension	Solid axle
Material	Material	Steel	Material	Steel

Chassis

Frame	Frame	Steel	Frame	Steel
Frame type	Frame type	Double cradle	Frame type	Double cradle
Rake	Rake	64 degree	Rake	64 degree
Trail	Trail	101 mm	Trail	101 mm

Brakes Front

Type	Type	Double disk	Type	Double disk
Piston	Piston	Four pistons	Piston	Six pistons
Shock mount	Shock mount	Fixed caliper	Shock mount	Fixed caliper

Brakes Rear

Type	Type	Disc	Type	Disc
Piston	Piston	Single piston	Piston	Single piston
Shock mount	Shock mount	Floating caliper	Shock mount	Floating caliper

Dimensions and Weights

Front tyre width	Front tyre width	130 mm	Front tyre width	130 mm
Front tyre height	Front tyre height	60 %	Front tyre height	60 %
Front tyre diameter	Front tyre diameter	19 inch	Front tyre diameter	19 inch
Rear tyre width	Rear tyre width	215 mm	Rear tyre width	205 mm
Rear tyre height	Rear tyre height	45 %	Rear tyre height	65 %
Rear tyre diameter	Rear tyre diameter	18 inch	Rear tyre diameter	15 inch
Length	Length	2,615 mm	Length	2,615 mm
Width	Width	1,405 mm	Width	1,390 mm
Wheelbase	Wheelbase	1,670 mm	Wheelbase	1,670 mm
Seat Height	Seat Height	700 mm	Seat Height	700 mm
Kerb Weight (with ABS)	Kerb Weight (with ABS)	504 kg	Kerb Weight (with ABS)	507 kg
Fuel Tank Capacity	Fuel Tank Capacity	22.7 l	Fuel Tank Capacity	22.7 l
Top Speed	Top Speed	150 km/h	Top Speed	150 km/h
License compliancy	License compliancy	A	License compliancy	A
