Yamaha FJR1300AS 2010 vs. Yamaha XVS 950 A 2014

Technical Specifications Yamaha FJR1300AS 2010 compared to Yamaha XVS 950 A 2014

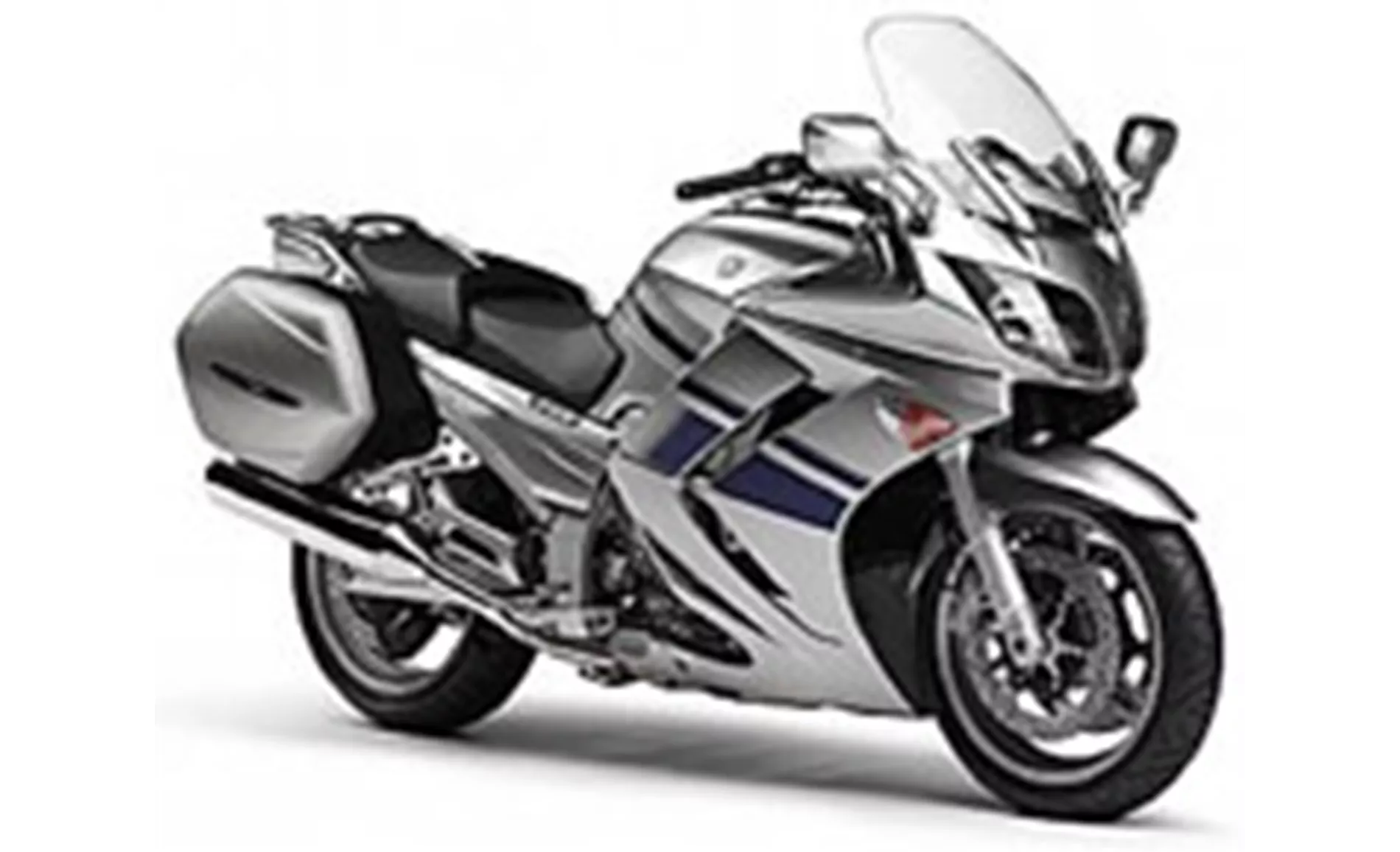

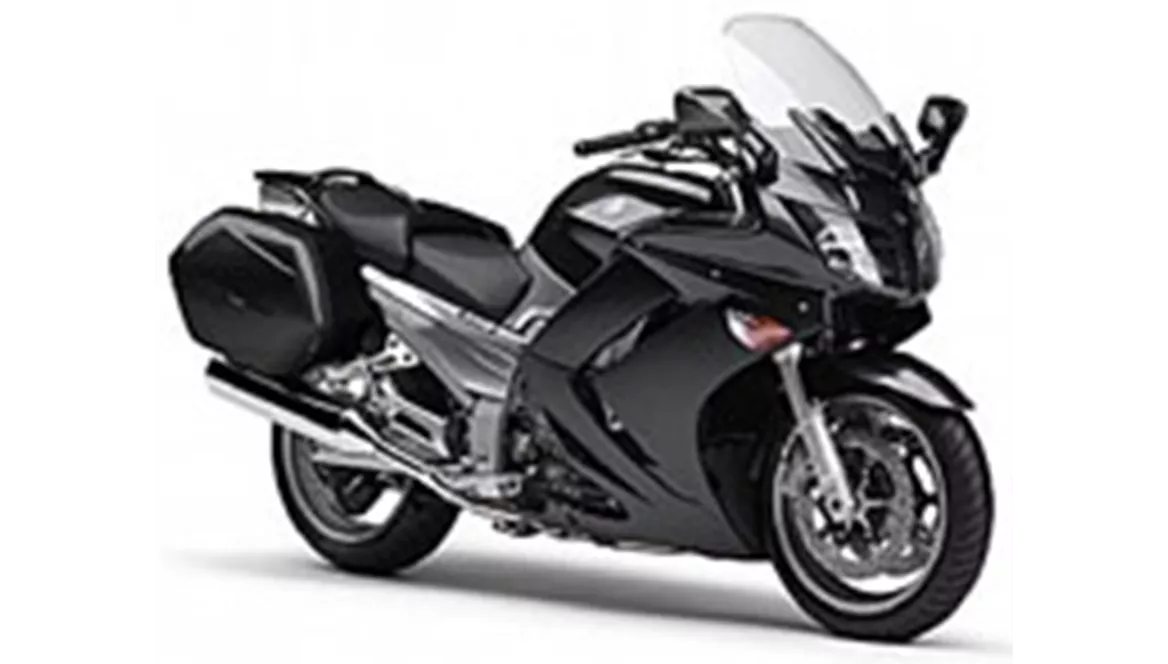

Yamaha FJR1300AS 2010

Yamaha XVS 950 A 2014

Show all

Same only

Differences

Yamaha FJR1300AS 2010

Yamaha XVS 950 A 2014

Engine and Drive Train

Bore	Bore	79 mm	Bore	85 mm
Stroke	Stroke	66.2 mm	Stroke	83 mm
Engine power	Engine power	144 HP	Engine power	54 HP
Rpm at Max. Power	Rpm at Max. Power	8,000 rpm	Rpm at Max. Power	6,000 rpm
Torque	Torque	134.4 Nm	Torque	76.8 Nm
Rpm at Torque	Rpm at Torque	7,000 rpm	Rpm at Torque	3,000 rpm
Compression Ratio	Compression Ratio	10.8	Compression Ratio	9
Clutch Type	Clutch Type	Multiplate in oil-bath	Clutch Type	Multiplate in oil-bath
Transmission	Transmission	Prop shaft	Transmission	Belt
Number of gears	Number of gears	5	Number of gears	5
Strokes	Strokes	4-Stroke	Strokes	4-Stroke
Valves per cylinder	Valves per cylinder	4	Valves per cylinder	4
Displacement	Displacement	1,298 ccm	Displacement	942 ccm

Suspension Front

Front suspension	Front suspension	Telescopic fork	Front suspension	Telescopic fork

Chassis

Frame	Frame	Aluminium	Frame	Steel
Frame type	Frame type	Twin Tube	Frame type	Double cradle

Brakes Rear

Type	Type	Disc	Type	Disc

Dimensions and Weights

Front tyre width	Front tyre width	120 mm	Front tyre width	130 mm
Front tyre height	Front tyre height	70 %	Front tyre height	70 %
Front tyre diameter	Front tyre diameter	17 inch	Front tyre diameter	18 inch
Rear tyre width	Rear tyre width	180 mm	Rear tyre width	170 mm
Rear tyre height	Rear tyre height	55 %	Rear tyre height	70 %
Rear tyre diameter	Rear tyre diameter	17 inch	Rear tyre diameter	16 inch
Length	Length	2,230 mm	Length	2,435 mm
Width	Width	750 mm	Width	1,000 mm
Height	Height	1,450 mm	Height	1,080 mm
Wheelbase	Wheelbase	1,545 mm	Wheelbase	1,685 mm
Seat Height	Seat Height	805 mm	Seat Height	675 mm
Kerb Weight	Kerb Weight	295 kg	Kerb Weight	278 kg
Fuel Tank Capacity	Fuel Tank Capacity	25 l	Fuel Tank Capacity	17 l
License compliancy	License compliancy	A	License compliancy	A
