MV Agusta F4 RC 2018 vs. MV Agusta F4 RR 2018

Technical Specifications MV Agusta F4 RC 2018 compared to MV Agusta F4 RR 2018

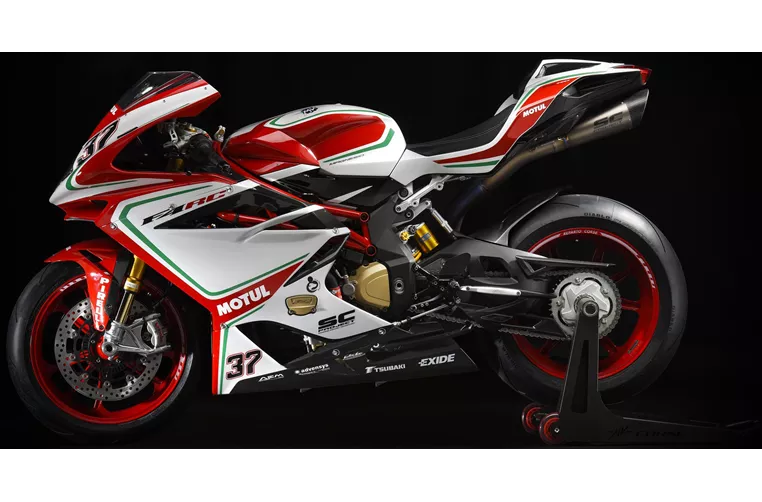

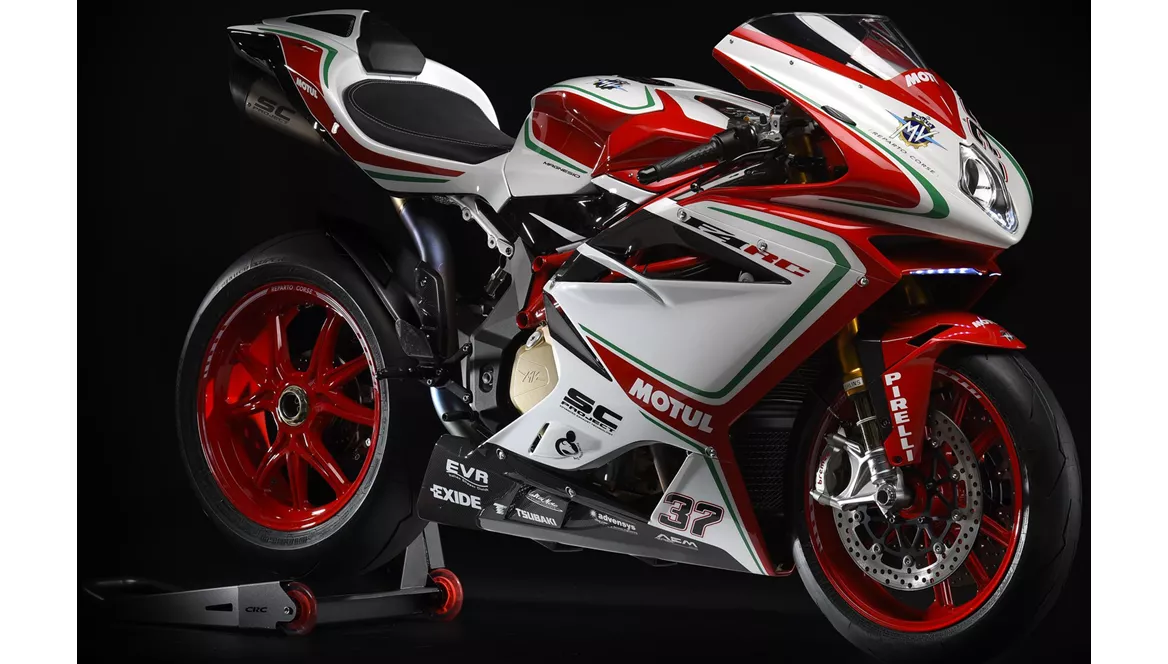

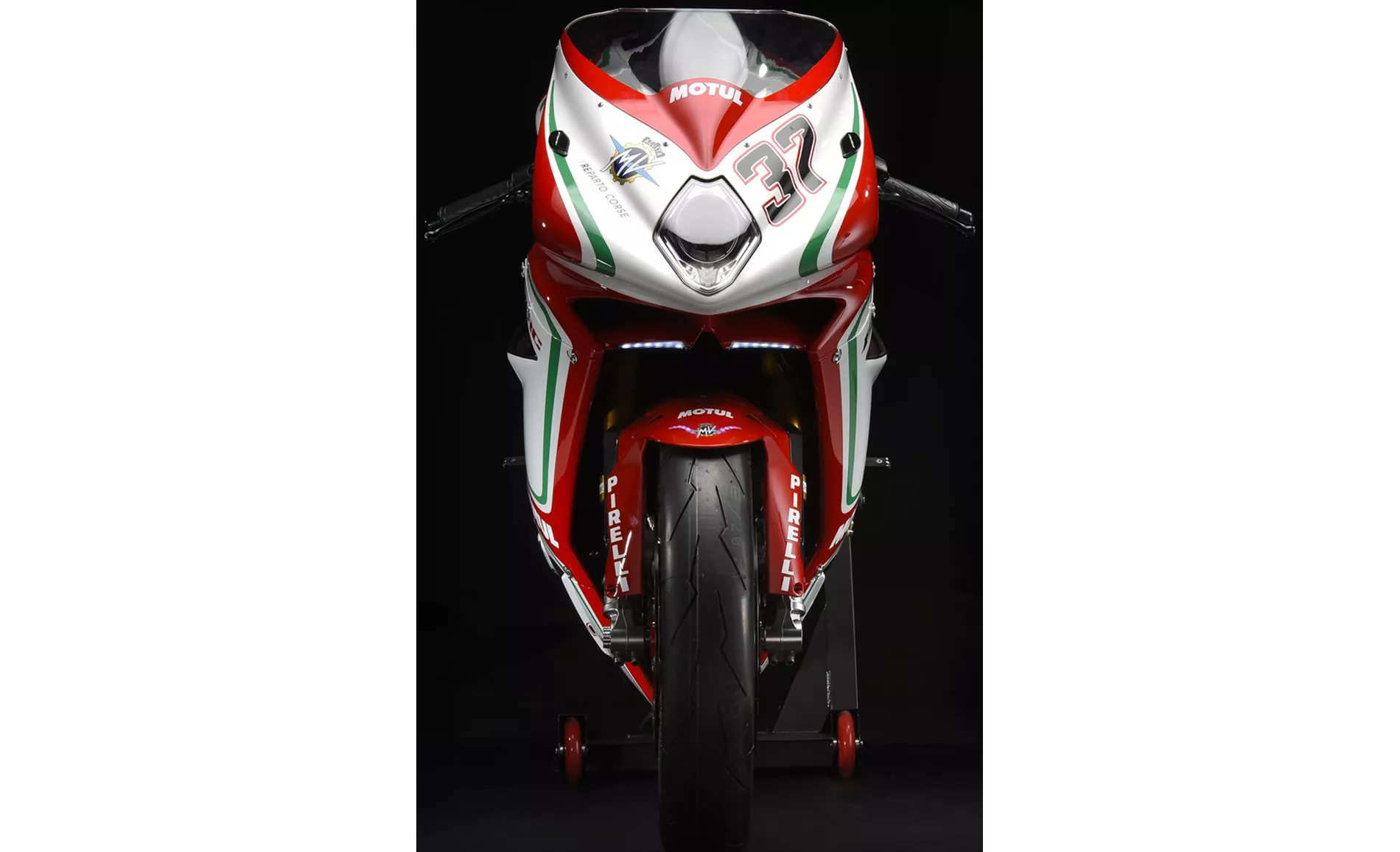

MV Agusta F4 RC 2018

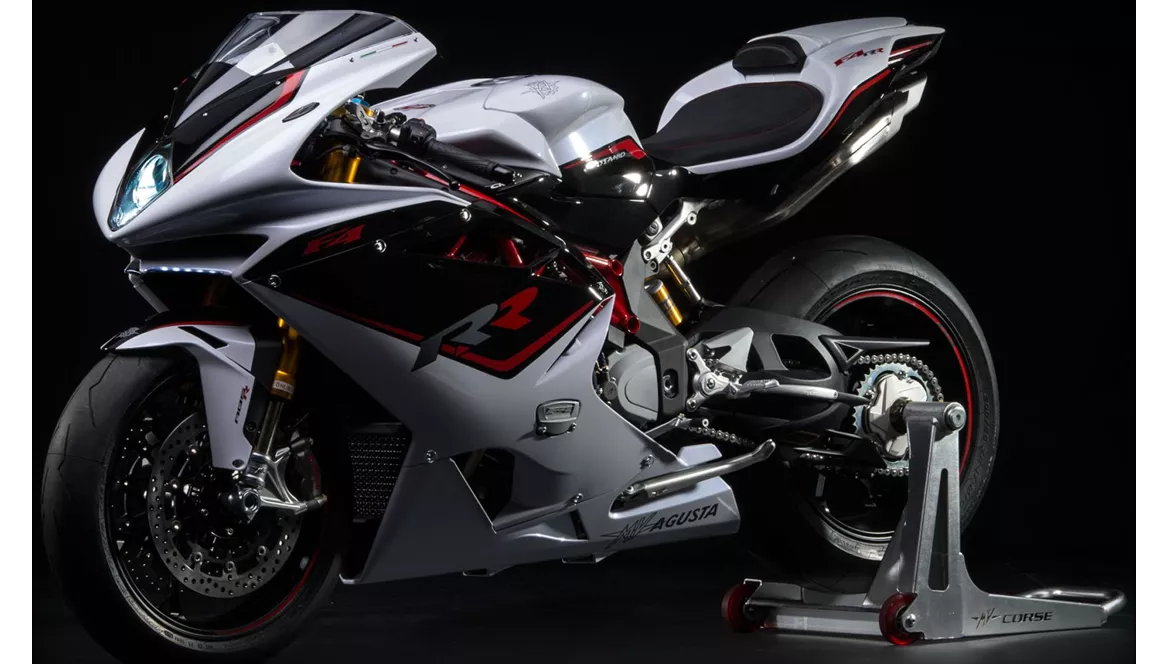

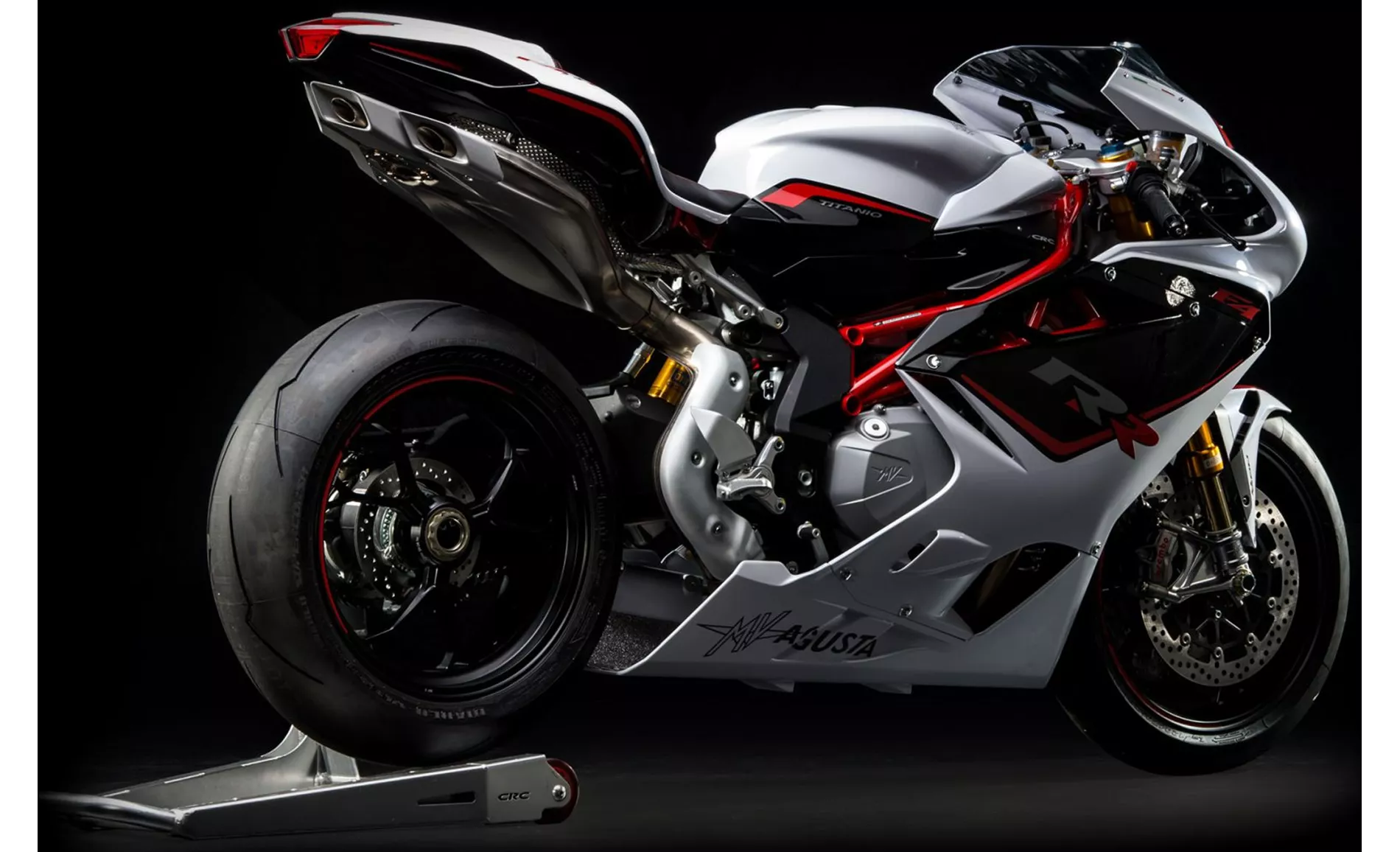

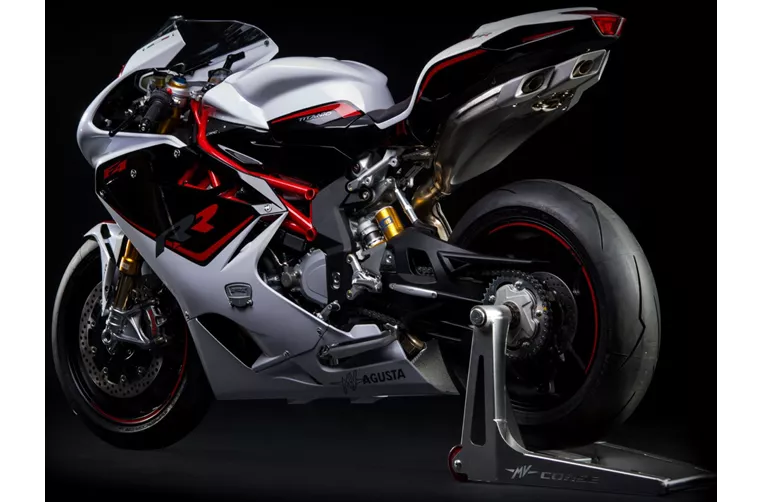

MV Agusta F4 RR 2018

Show all

Same only

Differences

MV Agusta F4 RC 2018

MV Agusta F4 RR 2018

Engine and Drive Train

Bore	Bore	79 mm	Bore	79 mm
Stroke	Stroke	50.9 mm	Stroke	50.9 mm
Engine power	Engine power	201 HP	Engine power	201 HP
Rpm at Max. Power	Rpm at Max. Power	13,600 rpm	Rpm at Max. Power	13,600 rpm
Torque	Torque	111 Nm	Torque	111 Nm
Rpm at Torque	Rpm at Torque	9,600 rpm	Rpm at Torque	9,600 rpm
Compression Ratio	Compression Ratio	13.4	Compression Ratio	13.4
Starter	Starter	Electric	Starter	Electric
Clutch Type	Clutch Type	Multiplate in oil-bath, Antihopping	Clutch Type	Multiplate in oil-bath, Antihopping
Transmission	Transmission	Chain	Transmission	Chain
Number of gears	Number of gears	6	Number of gears	6
Cylinders	Cylinders	4	Cylinders	4
Strokes	Strokes	4-Stroke	Strokes	4-Stroke
Valves per cylinder	Valves per cylinder	4	Valves per cylinder	4
Valves	Valves	DOHC	Valves	DOHC
Displacement	Displacement	998 ccm	Displacement	998 ccm

Suspension Front

Front suspension	Front suspension	Upside-Down telescopic fork	Front suspension	Upside-Down telescopic fork
Brand	Brand	Öhlins	Brand	Öhlins
Adjustment	Adjustment	Compression, Preload, Rebound	Adjustment	Compression, Preload, Rebound

Suspension Rear

Suspension	Suspension	Single swing arm	Suspension	Single swing arm
Brand	Brand	Öhlins	Brand	Öhlins
Adjustment	Adjustment	Compression, Preload, Rebound	Adjustment	Compression, Preload, Rebound

Chassis

Frame	Frame	Aluminium	Frame	Aluminium
Frame type	Frame type	Tubular	Frame type	Tubular

Brakes Front

Piston	Piston	Four pistons	Piston	Four pistons
Technology	Technology	radial, Monoblock	Technology	radial, Monoblock
Brand	Brand	Brembo	Brand	Brembo

Brakes Rear

Piston	Piston	Four pistons	Piston	Four pistons
Brand	Brand	Nissin	Brand	Nissin

Assistance Systems

Advanced Rider Assistance Systems	Advanced Rider Assistance Systems	Ride by Wire, Quickshifter, Traction control	Advanced Rider Assistance Systems	Ride by Wire, Quickshifter, Traction control

Dimensions and Weights

Front tyre width	Front tyre width	120 mm	Front tyre width	120 mm
Front tyre height	Front tyre height	70 %	Front tyre height	70 %
Front tyre diameter	Front tyre diameter	17 inch	Front tyre diameter	17 inch
Rear tyre width	Rear tyre width	200 mm	Rear tyre width	200 mm
Rear tyre height	Rear tyre height	55 %	Rear tyre height	55 %
Rear tyre diameter	Rear tyre diameter	17 inch	Rear tyre diameter	17 inch
Length	Length	2,115 mm	Length	2,115 mm
Width	Width	750 mm	Width	750 mm
Wheelbase	Wheelbase	1,430 mm	Wheelbase	1,430 mm
Seat Height	Seat Height	830 mm	Seat Height	830 mm
Dry Weight (with ABS)	Dry Weight (with ABS)	190 kg	Dry Weight (with ABS)	190 kg
Fuel Tank Capacity	Fuel Tank Capacity	17 l	Fuel Tank Capacity	17 l
Top Speed	Top Speed	297 km/h	Top Speed	297 km/h
License compliancy	License compliancy	A	License compliancy	A
