Yamaha TT-R50E 2024 vs. KTM 50 SX 2018

Technical Specifications Yamaha TT-R50E 2024 compared to KTM 50 SX 2018

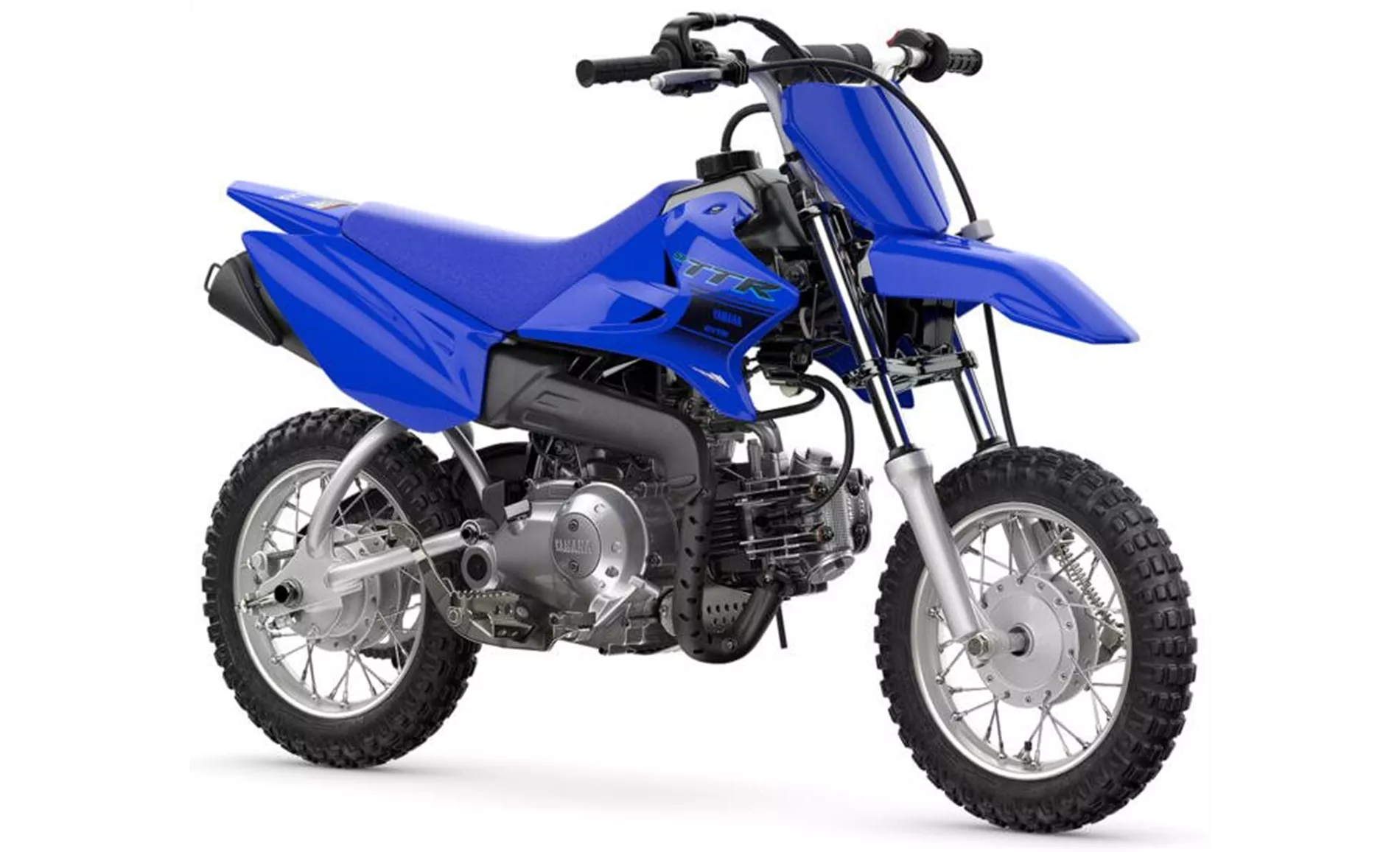

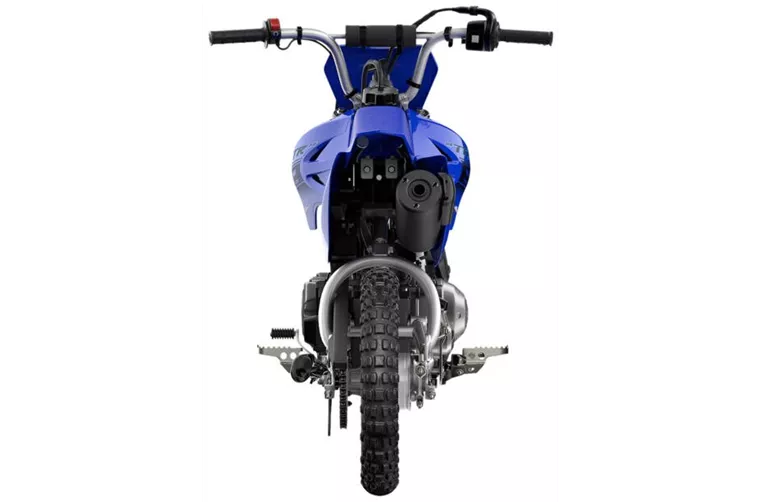

Yamaha TT-R50E 2024

KTM 50 SX 2018

Show all

Same only

Differences

Yamaha TT-R50E 2024

KTM 50 SX 2018

Engine and Drive Train

Bore	Bore	36 mm	Bore	39.5 mm
Stroke	Stroke	48.6 mm	Stroke	40 mm
Fuel system	Fuel system	Carburator	Fuel system	Carburator
Starter	Starter	Electric	Starter	Kick
Clutch Type	Clutch Type	Centrifugal force	Clutch Type	Centrifugal force
Transmission	Transmission	Chain	Transmission	Chain
Cylinders	Cylinders	1	Cylinders	1
Strokes	Strokes	4-Stroke	Strokes	2-Stroke
Cooling	Cooling	Air	Cooling	liquid
Displacement	Displacement	49 ccm	Displacement	49 ccm

Suspension Front

Front suspension	Front suspension	Telescopic fork	Front suspension	Upside-Down telescopic fork
Travel	Travel	96 mm	Travel	205 mm

Suspension Rear

Suspension	Suspension	Swing arm	Suspension	Swing arm
Travel	Travel	71 mm	Travel	185 mm

Chassis

Frame type	Frame type	Central tube	Frame type	Double cradle, Central tube

Brakes Front

Type	Type	Drum	Type	Single disk
Diameter	Diameter	80 mm	Diameter	160 mm

Brakes Rear

Type	Type	Drum	Type	Disc
Diameter	Diameter	80 mm	Diameter	160 mm

Dimensions and Weights

Front tyre diameter	Front tyre diameter	10 inch	Front tyre diameter	12 inch
Rear tyre diameter	Rear tyre diameter	10 inch	Rear tyre diameter	10 inch
Wheelbase	Wheelbase	925 mm	Wheelbase	1,032 mm
Seat Height	Seat Height	555 mm	Seat Height	684 mm
Fuel Tank Capacity	Fuel Tank Capacity	3.1 l	Fuel Tank Capacity	2.3 l
