Norton Manx R: The new British superbike with 209 hp in detail

Norton has been promising a return to the top for years. With the Manx R, the Solihull-based brand takes its most serious and most expensive step yet to reclaim a segment it should never have left.

Anyone who has followed British motorsport and watched the rebirth of Norton under the umbrella of TVS Motor Company will hardly have been surprised by the presentation of the Manx R. The brand has been working consistently towards this goal for years: first with the V4SV, and now with the Manx, Manx R and the Atlas, which were presented together at EICMA. A V4 with 1,200 cc, 209 hp, semi-active Marzocchi suspension and the latest generation of Bosch electronics. In short: everything a serious manufacturer in the superbike segment needs to bring to the table in 2026.

Norton Manx R: a completely new engine from the ground up

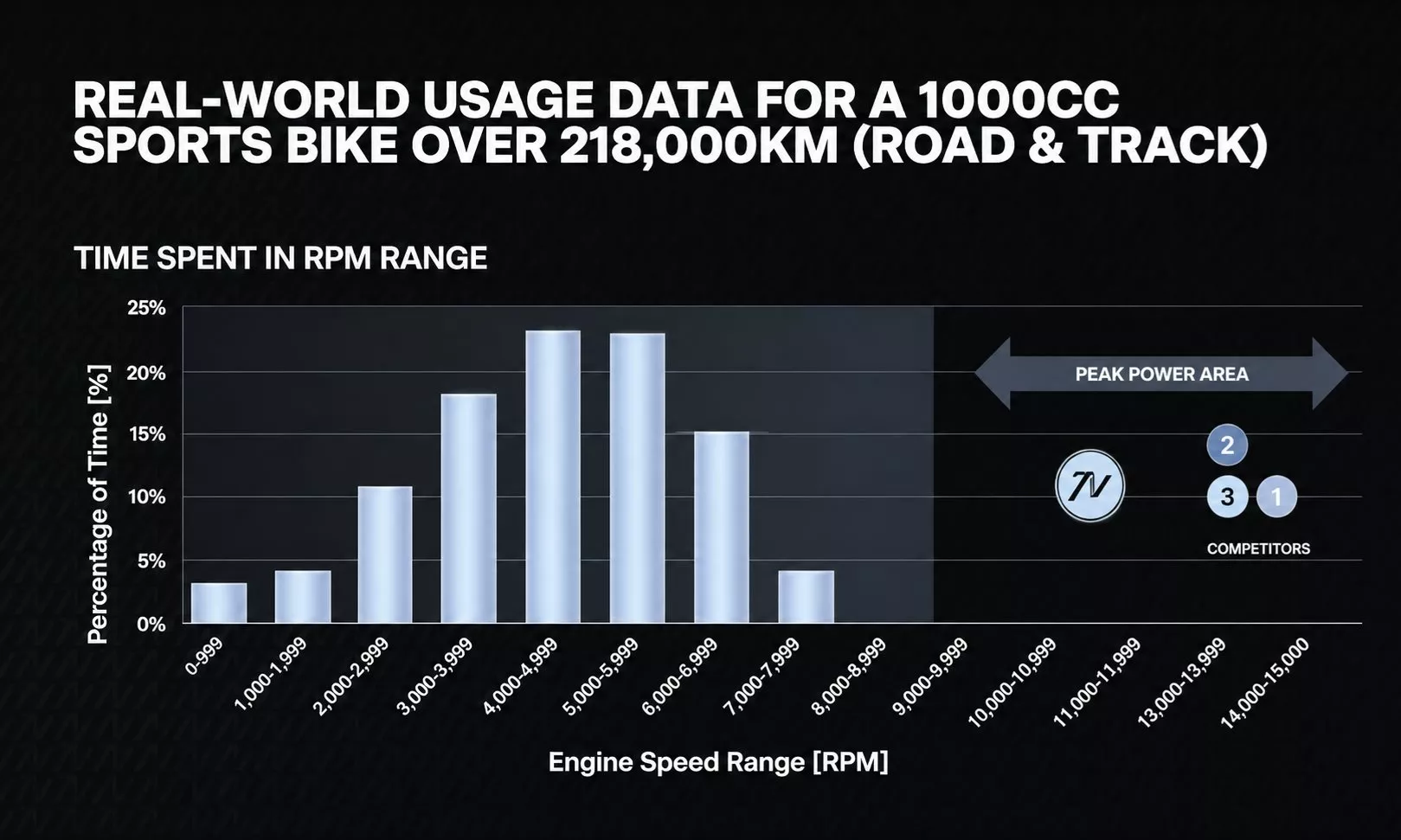

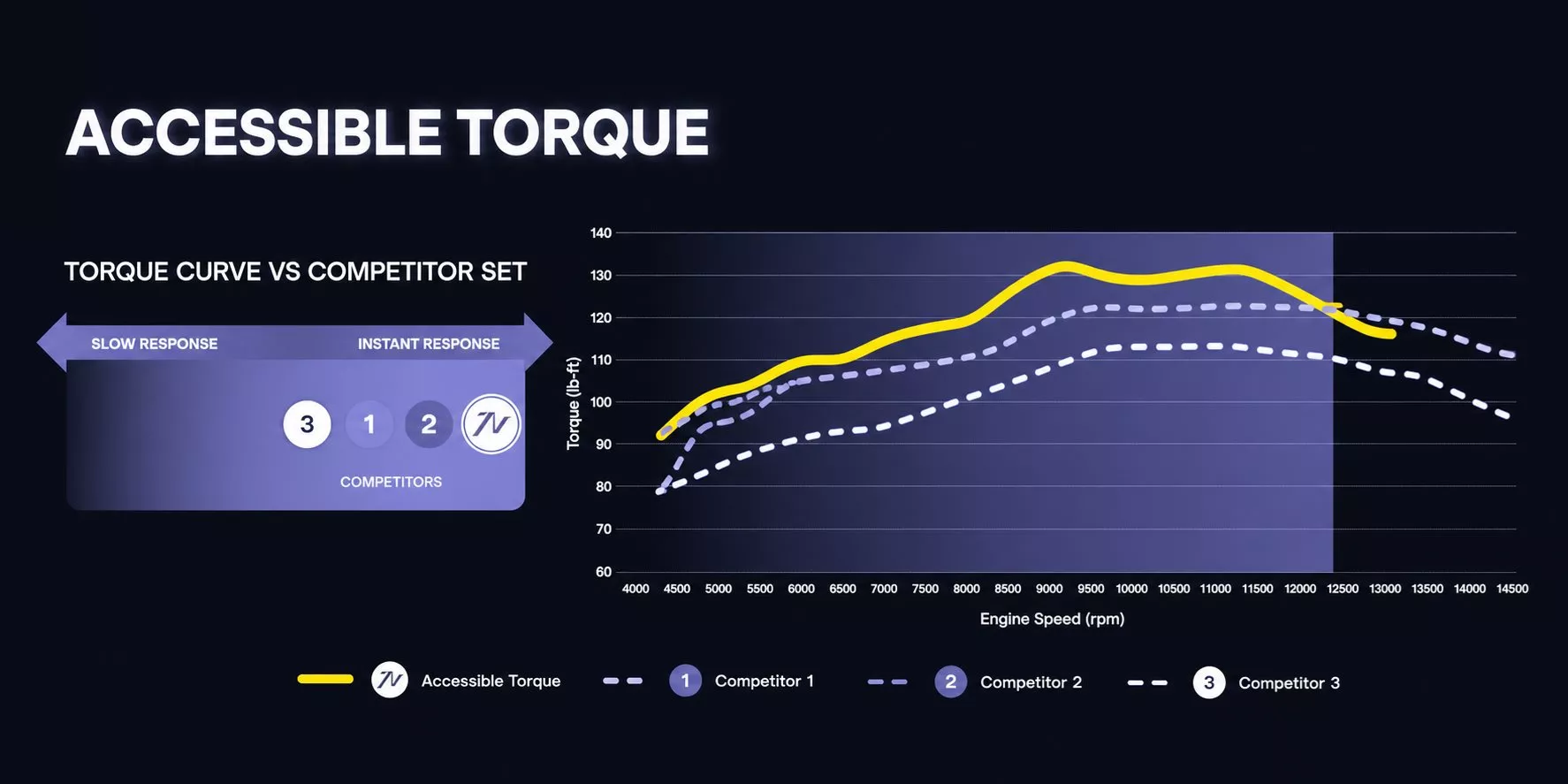

Although the Manx R's engine shares the same 1,200 cc displacement, the same 82 mm piston diameter and the same 72° V-angle with the V4SV unit, it has been developed entirely from scratch. Not a single component carried over, according to Norton. The result: 209 hp at 11,500 rpm and 130 (!) Nm at 9,000 rpm. The most interesting figure is a different one: already at 5,000 rpm, the engine delivers 77 percent of its maximum torque. That is the best-in-class figure for this parameter and should make a genuinely noticeable difference in everyday riding, since this is where you spend most of your time. Gear selection, rhythm changes, corner exits: everything becomes easier when torque is available on demand.

The 72° V-angle enables what Norton calls a "Phased Pulse" firing order: an irregular combustion sequence that improves grip and produces a unique riding feel under hard acceleration, especially through fast corner sequences.

In the combustion chamber with its 82 mm bore, development work focused on optimising tumble and swirl flow. At such a high compression ratio, precise control of combustion is critical, not least with regard to Euro 5+ homologation, which mandates misfire detection. The solution: two injectors per cylinder in different positions. The lower one, below the throttle body, optimises throttle response; the upper one, a "shower" injection above the throttle body, maximises peak power. Since all four throttle bodies are mounted vertically, gravity also assists cylinder filling ahead of each combustion pulse.

One detail that appears in no brochure, but which we were able to learn at the press conference: Norton controls the two cylinder banks independently of each other. In practice, the engine behaves like two coupled twin-cylinder engines. When accelerating out of a corner, as the rider begins to open the throttle, the cylinders of one bank can remain almost closed while the other bank operates with wider-open throttle bodies. This increases intake velocity, improves mixture preparation and therefore combustion. According to Norton's engineers, throttle response improves significantly compared to uniform control of all four cylinders.

The gearbox is mounted at a slight upward angle, which brings two practical advantages: the gears sit above the oil level in the sump, reducing drag losses, and it makes the engine block more compact, allowing the swingarm pivot to move forward so the swingarm can be longer without increasing the wheelbase. The camshaft drive uses an intermediate gear with split gears instead of a chain, which allows smaller sprockets and reduces the overall engine height by 12 mm.

Exhaust system: what looks at first glance like a design decision actually conceals thoroughly considered engineering. Routing the exhaust system under the engine rather than to the side is not purely aesthetic: it keeps the centre of gravity low and central, prevents mass from shifting rearward and upward — which would compromise braking performance and reduce rear wheel grip — and directs heat away from the rider. Heat management on a bike with over 200 hp is no minor consideration: it causes fatigue, and fatigue diminishes the riding experience. According to Brian, the chief engineer who presented the technical details to us in Seville, the development process for the exhaust system was "extremely complex" and led to intense exchanges with Simon, the design lead, on more than one occasion.

Norton Manx R: a chassis with its own philosophy

Norton has made an interesting and bold decision with the chassis. Rather than copying the purely track-oriented philosophy of European and Japanese competitors, the brand drew inspiration from the Isle of Man TT. The argument: a road superbike must work on real roads, with all their bumps and unpredictability, not just on the perfectly smooth tarmac of a race track.

The key lies in the distribution of stiffness. The frame is very stiff longitudinally, which is exactly right under hard braking and acceleration. In the torsional and lateral planes, however, Norton has built in controlled flex. The reason is straightforward: above 40 to 42 degrees of lean angle, it is no longer the suspension that absorbs the imperfections of the asphalt, but the inherent flex of the frame itself. On real roads, with their potholes and surface irregularities, it is precisely this flex that keeps the tyre in contact with the ground and gives the rider feedback.

The result is a frame made from five die-cast aluminium sections, manufactured entirely in Great Britain, welded and CNC-machined as a single unit. The geometry is conservative for a superbike: 24.1° steering head angle, 94.5 mm trail and a 1,435 mm wheelbase.

The semi-active Marzocchi suspension deserves its own paragraph. What sets this system apart from others is the position of the linear potentiometer: not on the outside of the fork, as on race bikes, but integrated inside the right fork leg. This allows the position, velocity and acceleration of the fork to be known precisely at all times. The rear shock also features an integrated potentiometer. Using data from the six-axis IMU, the system continuously adjusts compression and rebound, with an algorithm that updates every three milliseconds. This is not marketing speak: it is exactly what MotoGP bikes have been doing for years, transferred to a road bike.

Norton Manx R: the electronics as the real game-changer

What truly sets the Manx R apart from its predecessors is not the power curve, but the depth of the electronics package. The six-axis Bosch IMU controls ten active systems. Some deserve an explanation, because they are not quite what they appear to be at first glance.

Take the wheelie control, for example. Brian was very clear during the presentation: "We don't have an anti-wheelie system. We have wheelie control." The difference is not semantic. The system does not try to prevent the front wheel from lifting, but to control it: it manages the pitch rate and torque saturation so the front wheel doesn't rise too high, and also governs the speed at which it comes back down. It is adjustable and can be fully deactivated. Norton wants wheelies to be safe and fun, not to disappear.

The braking system also deserves attention. Norton and Bosch did not sit down and pick a system from a catalogue: they first defined the desired riding behaviour and then worked together to achieve it. The target was 1 G of deceleration, which according to Norton no hyperbike had achieved in independent testing. To accomplish this, the RLM system (Rear Lift Mitigation) allows the rear wheel to lift once under hard braking, in order to achieve maximum weight transfer to the front wheel and therefore maximum grip. Immediately afterwards, it lowers the rear wheel in a controlled manner and keeps it on the ground for the rest of the braking manoeuvre. With the rear wheel on the ground, you can decelerate using engine braking, steer the bike and hit the apex earlier — Martin Bauer will find out how well this works in practice. The discs are floating Brembo rotors with a 320 mm diameter, combined with next-generation Hypure callipers.

The combined braking system adds a further dimension: by combining front brake pressure with a light touch on the rear brake, the cornering slide control is activated, which manages the drift angle of the bike towards the apex. A very powerful tool for anyone who wants to push the bike to its limits on the race track.

One system that rarely appears in hyperbike spec sheets: the hill hold assist. You stop at a traffic light on a slope, apply the brake once and can then release it. The bike holds itself in position until you pull away. A small detail with significant everyday benefit.

We are particularly curious about the N-DCC, the world's first "cornering cruise control".

The 8-inch TFT display is a touchscreen, and that is more relevant than it sounds. No menu navigation via handlebar switches: you simply tap directly on whatever you want on the screen. The connectivity system, developed by the TVS engineering team in Hosur, India, integrates Bluetooth, Wi-Fi, GoPro control, navigation with waypoints and smartphone mirroring in the cockpit. Updates arrive over-the-air. And according to Norton, the Manx R is the only fully keyless bike in its category, with a remote-controlled IMU immobiliser as anti-theft protection.

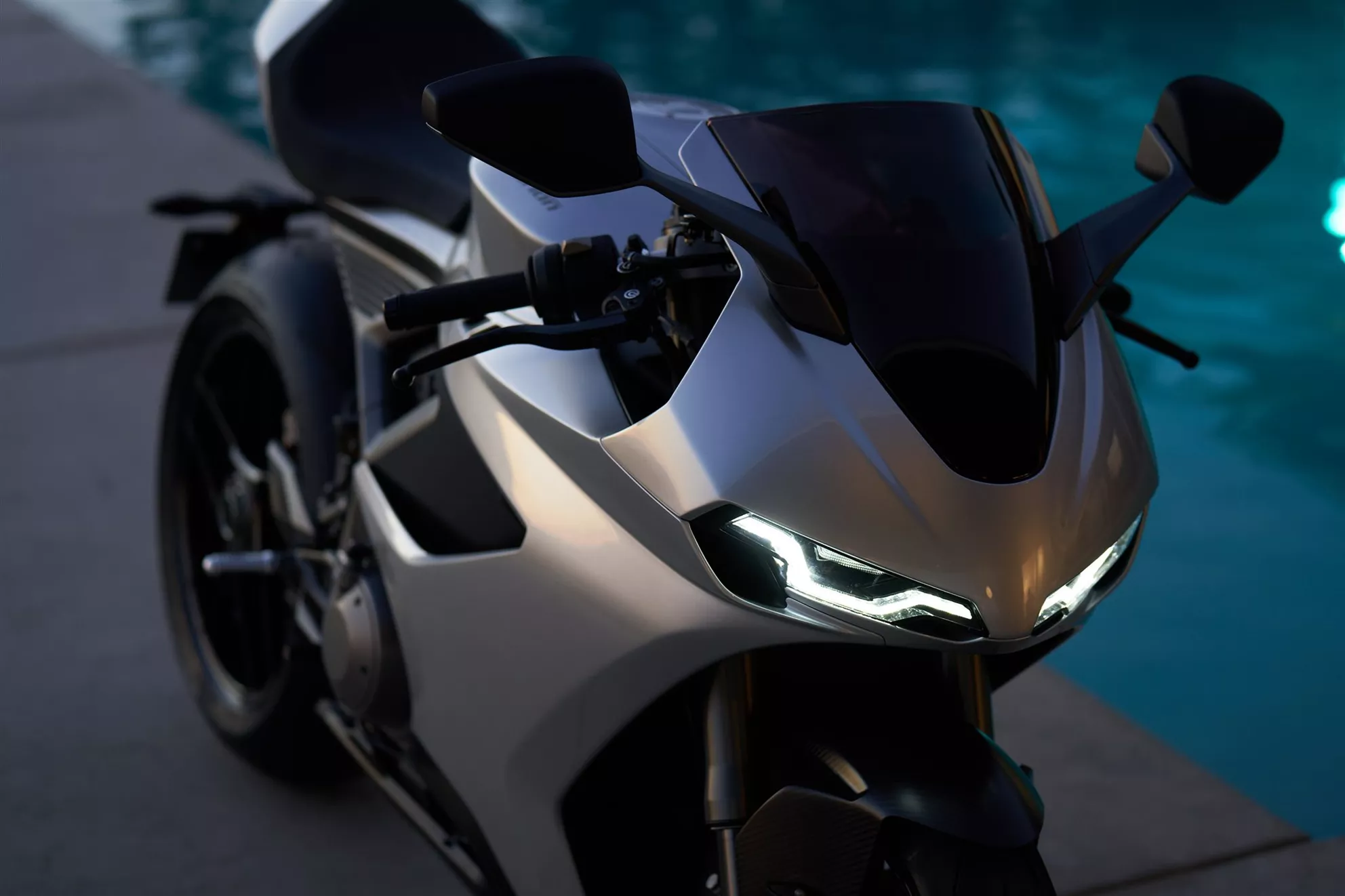

One detail not mentioned in the press release: the front daytime running lights are customisable. You can choose the LED start-up sequence when the bike fires up. Someone in the room mentioned Knight Rider, and the engineer did not disagree.

Norton Manx R: four versions and a price list without mercy

Norton brings the Manx R to market in four variants that differ not just visually, but substantially from one another. The Manx R as the entry-level version starts at €23,250, comes with manually adjustable passive Marzocchi suspension, cast aluminium wheels and Pirelli Diablo Supercorsa SP V4 tyres in the dimensions 120/70-17 and 200/55-17. The electronics package is complete: five riding modes (Rain, Road, Sport and two configurable Track modes), lean-angle-sensitive traction control, wheelie control, launch control, bidirectional quickshifter and Bosch cornering ABS. Dry weight: 210 kg.

The Manx R Apex costs €29,750 and is probably the most interesting variant in the range. It adds the semi-active Marzocchi suspension with real-time electronic control and OZ Racing forged wheels. Weight drops to 207 kg. Riders who want to use the bike regularly on the road will be best served here.

The Manx R Signature at €43,750 makes a significant quality leap in the materials used: full carbon fairing, Rotobox Bullet Pro carbon wheels, single-seat configuration, the same semi-active suspension as the Apex and a welcome sequence in the cockpit that Norton calls "Signature". Weight falls to 203 kg, primarily thanks to the carbon wheels, which noticeably reduce unsprung rotating mass.

And then there is the First Edition at price on request, which over the Signature adds a standard Akrapovič titanium exhaust system, titanium fasteners for the frame, engine and fairing, billet machined aluminium components on all controls (levers, footpegs, covers), a DLC-coated front fork, a quilted leather seat with embroidery, a numbered upper fork bridge and a hand-airbrushed Union Jack on the side fairings. For those who want something truly exclusive and can afford it.

Norton Manx R and TVS: context matters

Norton has been under the control of TVS Motor Company since 2019, one of the world's largest motorcycle manufacturers, headquartered in India. TVS has invested more than £200 million in reviving the brand and has built a completely new production facility in Solihull, in the heart of the West Midlands. The Manx R is the first model to come to market in this new chapter, and it carries the full weight of responsibility for proving the seriousness of the project.

Does it deliver? On paper, without question. 209 hp, 130 Nm, 201 kg dry weight in the lightest version, semi-active suspension with integrated potentiometers in the fork and shock, Brembo brakes with 1 G deceleration, road-legal race tyres and electronics that do not merely manage power, but redefine how the rider connects with the bike. The shopping list is complete.

What remains is the question of whether all of this translates into a bike with its own character — that riding feel Norton has been promising for decades and which its most recent models have come ever closer to achieving without quite getting there. The road will tell. As a starting point, however, the Manx R is without doubt the most serious Norton in decades. Now it gets tested.
