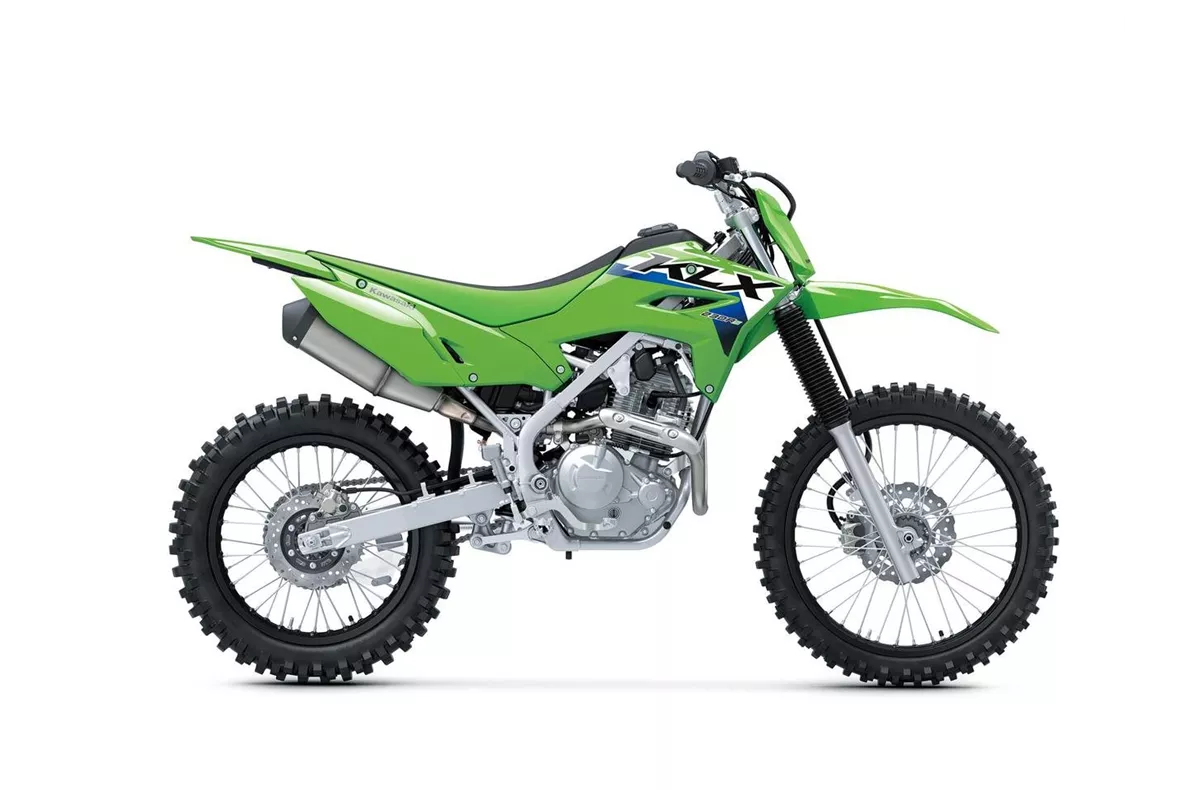

Kawasaki KLX230R S
Find technical data, prices and reviews.
Key Specification Kawasaki KLX230R S 2027
Engine and Drive Train
| Bore | 67 mm |
|---|---|
| Stroke | 66 mm |
| Compression Ratio | 9.4 |
| Fuel system | Injection |
| Injectors per Cylinder | 1 |
| Throttle Bore | 32 mm |
| Starter | Electric |
| Clutch Type | Multiplate in oil-bath |
| Ignition | Transistor |
| Transmission | Chain |
| Transmission Type | Gearshift |
| Number of gears | 6 |
| Cylinders | 1 |
| Strokes | 4-Stroke |
| Valves per cylinder | 2 |
| Valves | OHC |
| Cooling | Air |
| Lubrication | Forced |
| Displacement | 233 ccm |
Suspension Front
| Front suspension | Telescopic fork |
|---|---|
| Diameter | 37 mm |
| Travel | 220 mm |
Suspension Rear
| Suspension | Swing arm |
|---|---|
| Shock mount | Uni Trak |
| Travel | 217 mm |
| Adjustment | Preload |
| Material | Aluminium |
Chassis
| Frame | Steel |
|---|---|
| Frame type | Double cradle |
| Rake | 24.6 degree |
| Trail | 100 mm |
Brakes Front
| Type | Single disk |
|---|---|
| Diameter | 240 mm |
| Piston | Double piston |
| Technology | Petal |
Brakes Rear
| Type | Disc |
|---|---|
| Diameter | 220 mm |
| Piston | Single piston |
Dimensions and Weights
| Front tyre width | 80 mm |
|---|---|
| Front tyre height | 100 % |
| Front tyre diameter | 21 inch |
| Rear tyre width | 100 mm |
| Rear tyre height | 100 % |
| Rear tyre diameter | 18 inch |
| Length | 2035 mm |
| Width | 845 mm |
| Height | 1185 mm |
| Wheelbase | 1355 mm |
| Seat Height | 875 mm |
| Seat Height up to | 875 mm |
| Dry Weight | 112 kg |
| Kerb Weight | 119 kg |
| Fuel Tank Capacity | 7.6 l |
| Ground clearance | 270 mm |
