Malaguti XSM 125 Supermoto 2025 vs. Malaguti XTM 125 2025

Technical Specifications Malaguti XSM 125 Supermoto 2025 compared to Malaguti XTM 125 2025

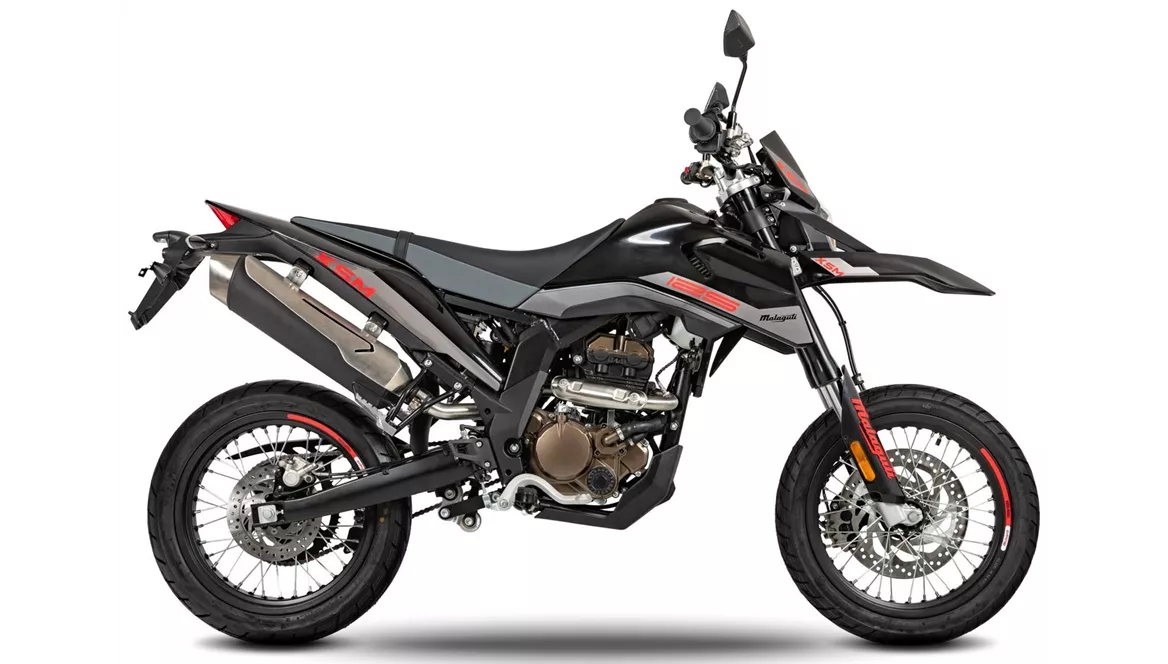

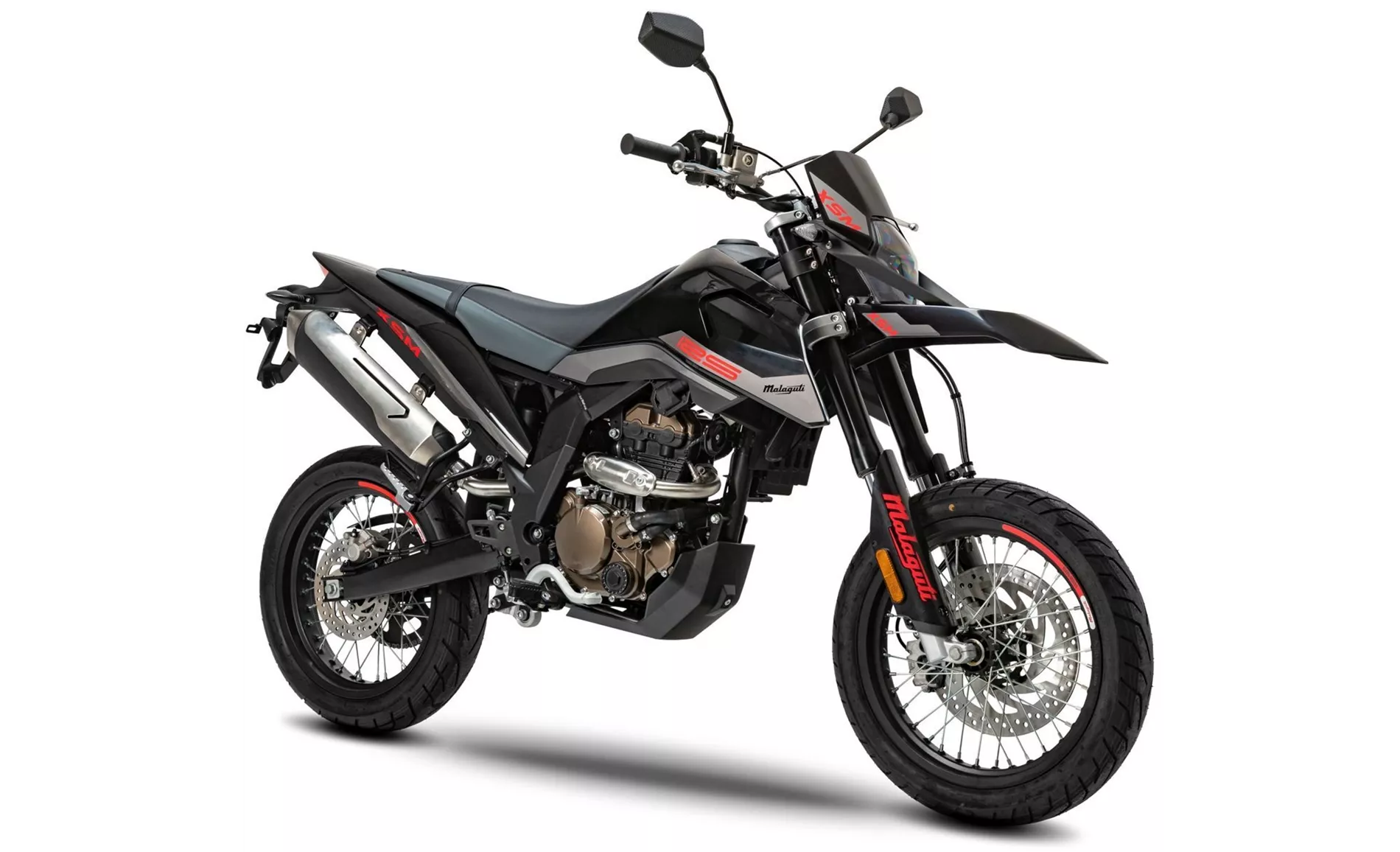

Malaguti XSM 125 Supermoto 2025

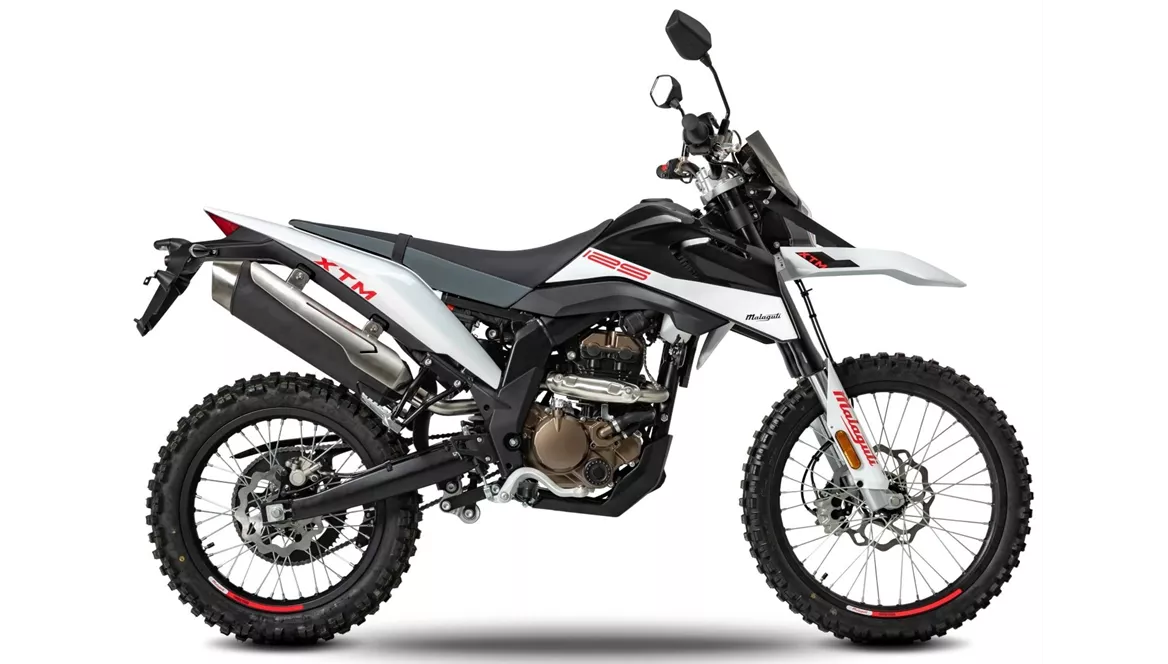

Malaguti XTM 125 2025

Show all

Same only

Differences

Malaguti XSM 125 Supermoto 2025

Malaguti XTM 125 2025

Engine and Drive Train

Engine power	Engine power	15 HP	Engine power	15 HP
Rpm at Max. Power	Rpm at Max. Power	10,750 rpm	Rpm at Max. Power	10,750 rpm
Torque	Torque	11 Nm	Torque	11 Nm
Rpm at Torque	Rpm at Torque	8,000 rpm	Rpm at Torque	8,000 rpm
Fuel system	Fuel system	Injection	Fuel system	Injection
Starter	Starter	Electric	Starter	Electric
Clutch Type	Clutch Type	Multiplate in oil-bath	Clutch Type	Multiplate in oil-bath
Ignition	Ignition	ECU	Ignition	ECU
Transmission	Transmission	Chain	Transmission	Chain
Transmission Type	Transmission Type	Gearshift	Transmission Type	Gearshift
Number of gears	Number of gears	6	Number of gears	6
Cylinders	Cylinders	1	Cylinders	1
Strokes	Strokes	4-Stroke	Strokes	4-Stroke
Cooling	Cooling	liquid	Cooling	liquid
Displacement	Displacement	125 ccm	Displacement	125 ccm

Suspension Front

Front suspension	Front suspension	Upside-Down telescopic fork	Front suspension	Upside-Down telescopic fork
Diameter	Diameter	41 mm	Diameter	41 mm

Suspension Rear

Suspension	Suspension	Swing arm	Suspension	Swing arm
Shock absorber	Shock absorber	Monoshock	Shock absorber	Monoshock

Brakes Front

Type	Type	Single disk	Type	Single disk
Diameter	Diameter	300 mm	Diameter	260 mm

Brakes Rear

Type	Type	Disc	Type	Disc
Diameter	Diameter	218 mm	Diameter	218 mm

Assistance Systems

Advanced Rider Assistance Systems	Advanced Rider Assistance Systems	ABS	Advanced Rider Assistance Systems	ABS

Dimensions and Weights

Front tyre width	Front tyre width	100 mm	Front tyre width	90 mm
Front tyre height	Front tyre height	80 %	Front tyre height	90 %
Front tyre diameter	Front tyre diameter	17 inch	Front tyre diameter	21 inch
Rear tyre width	Rear tyre width	130 mm	Rear tyre width	120 mm
Rear tyre height	Rear tyre height	70 %	Rear tyre height	80 %
Rear tyre diameter	Rear tyre diameter	17 inch	Rear tyre diameter	18 inch
Length	Length	2,080 mm	Length	2,140 mm
Width	Width	820 mm	Width	825 mm
Height	Height	1,120 mm	Height	1,220 mm
Seat Height	Seat Height	865 mm	Seat Height	910 mm
Fuel Tank Capacity	Fuel Tank Capacity	7.2 l	Fuel Tank Capacity	7.2 l
Top Speed	Top Speed	99 km/h	Top Speed	99 km/h
Range	Range	288 km	Range	288 km
Combined CO2 emissions	Combined CO2 emissions	6.3 g/km	Combined CO2 emissions	63 g/km
Combined fuel consumption	Combined fuel consumption	2.5 l/100km	Combined fuel consumption	2.5 l/100km
Ground clearance	Ground clearance	250 mm	Ground clearance	300 mm
