Harley-Davidson CVO Pan America 2024 vs. Ducati Panigale V4 S 2020

Technical Specifications Harley-Davidson CVO Pan America 2024 compared to Ducati Panigale V4 S 2020

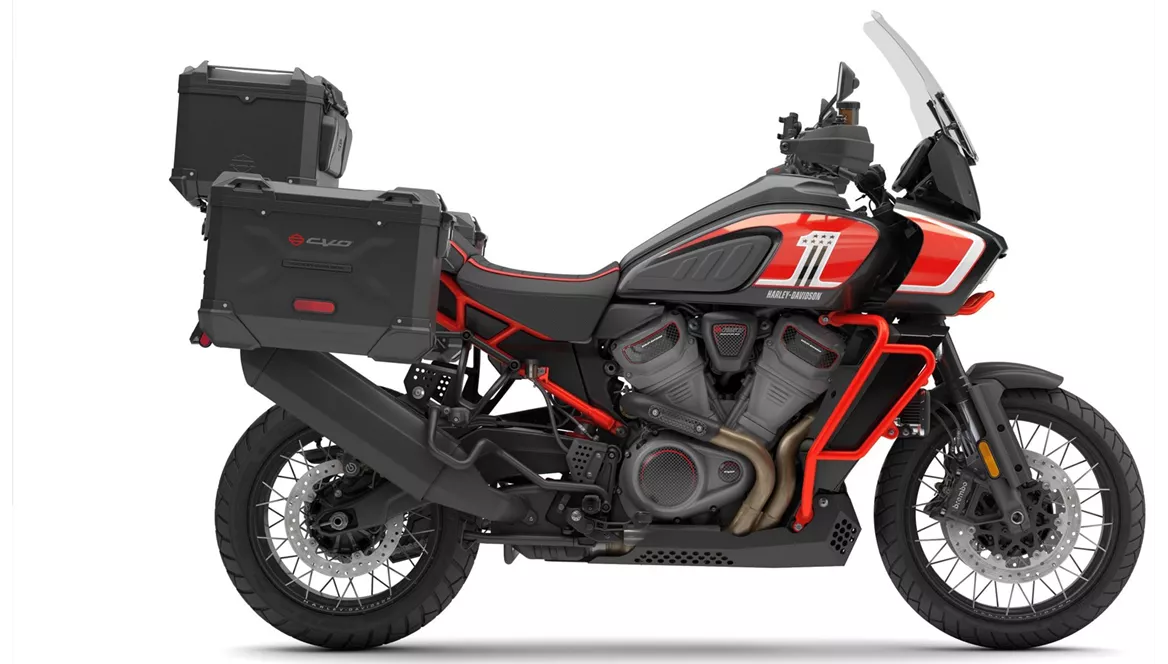

Harley-Davidson CVO Pan America 2024

Ducati Panigale V4 S 2020

Show all

Same only

Differences

Harley-Davidson CVO Pan America 2024

Ducati Panigale V4 S 2020

Engine and Drive Train

Engine type	Engine type	V	Engine type	V
Bore	Bore	105 mm	Bore	81 mm
Stroke	Stroke	72.3 mm	Stroke	53.5 mm
Engine power	Engine power	152 HP	Engine power	214 HP
Rpm at Max. Power	Rpm at Max. Power	8,750 rpm	Rpm at Max. Power	13,000 rpm
Torque	Torque	128 Nm	Torque	124 Nm
Rpm at Torque	Rpm at Torque	6,750 rpm	Rpm at Torque	10,000 rpm
Compression Ratio	Compression Ratio	13	Compression Ratio	14
Fuel system	Fuel system	Injection	Fuel system	Injection
Starter	Starter	Electric	Starter	Electric
Clutch Type	Clutch Type	Multiplate in oil-bath	Clutch Type	Multiplate in oil-bath
Transmission	Transmission	Chain	Transmission	Chain
Transmission Type	Transmission Type	Gearshift	Transmission Type	Gearshift
Number of gears	Number of gears	6	Number of gears	6
Cylinders	Cylinders	2	Cylinders	4
Strokes	Strokes	4-Stroke	Strokes	4-Stroke
Valves per cylinder	Valves per cylinder	4	Valves per cylinder	4
Valves	Valves	DOHC	Valves	Desmodromic
Cooling	Cooling	liquid	Cooling	liquid
Displacement	Displacement	1,252 ccm	Displacement	1,103 ccm

Suspension Front

Front suspension	Front suspension	Upside-Down telescopic fork	Front suspension	Upside-Down telescopic fork
Diameter	Diameter	47 mm	Diameter	43 mm
Travel	Travel	191 mm	Travel	120 mm
Adjustment	Adjustment	Compression, Preload, Rebound	Adjustment	Compression, Preload, Rebound

Suspension Rear

Suspension	Suspension	Swing arm	Suspension	Single swing arm
Shock absorber	Shock absorber	Monoshock	Shock absorber	Monoshock
Travel	Travel	191 mm	Travel	130 mm
Adjustment	Adjustment	Compression, Preload, Rebound	Adjustment	Compression, Preload, Rebound
Material	Material	Aluminium	Material	Aluminium

Chassis

Frame	Frame	Aluminium	Frame	Aluminium
Frame type	Frame type	Double cradle	Frame type	Monocoque
Rake	Rake	65 degree	Rake	65.5 degree
Trail	Trail	108 mm	Trail	100 mm

Brakes Front

Type	Type	Double disk	Type	Double disk
Diameter	Diameter	320 mm	Diameter	330 mm
Piston	Piston	Four pistons	Piston	Four pistons
Technology	Technology	radial, Monoblock	Technology	radial, Monoblock
Brand	Brand	Brembo	Brand	Brembo

Brakes Rear

Type	Type	Disc	Type	Disc
Diameter	Diameter	280 mm	Diameter	245 mm
Piston	Piston	Single piston	Piston	Double piston

Assistance Systems

Advanced Rider Assistance Systems	Advanced Rider Assistance Systems	ABS, Hill start assist, Suspension electronically adjustable, Riding modes, Combined Brake System, Cornering ABS, Ride by Wire, Quickshifter, Shift assistant with blipper, Cruise control, Traction control, Anti-wheelie	Advanced Rider Assistance Systems	ABS

Dimensions and Weights

Front tyre width	Front tyre width	120 mm	Front tyre width	120 mm
Front tyre height	Front tyre height	70 %	Front tyre height	70 %
Front tyre diameter	Front tyre diameter	19 inch	Front tyre diameter	17 inch
Rear tyre width	Rear tyre width	170 mm	Rear tyre width	200 mm
Rear tyre height	Rear tyre height	60 %	Rear tyre height	60 %
Rear tyre diameter	Rear tyre diameter	17 inch	Rear tyre diameter	17 inch
Wheelbase	Wheelbase	1,585 mm	Wheelbase	1,469 mm
Seat Height	Seat Height	830 mm	Seat Height	830 mm
Dry Weight (with ABS)	Dry Weight (with ABS)	284 kg	Dry Weight (with ABS)	174 kg
Kerb Weight (with ABS)	Kerb Weight (with ABS)	299 kg	Kerb Weight (with ABS)	195 kg
Fuel Tank Capacity	Fuel Tank Capacity	21.2 l	Fuel Tank Capacity	16 l
License compliancy	License compliancy	A	License compliancy	A

Equipment

Equipment	Equipment	Bluetooth, Connectivity, Heated grips, Case system, Cornering lights, LED daytime running lights, LED-Headlights, TFT display, Topcase, Windscreen adjustable	Equipment	LED-Headlights
