Harley-Davidson Sportster XL 883 R Roadster 2015 vs. Triumph Bonneville 2013

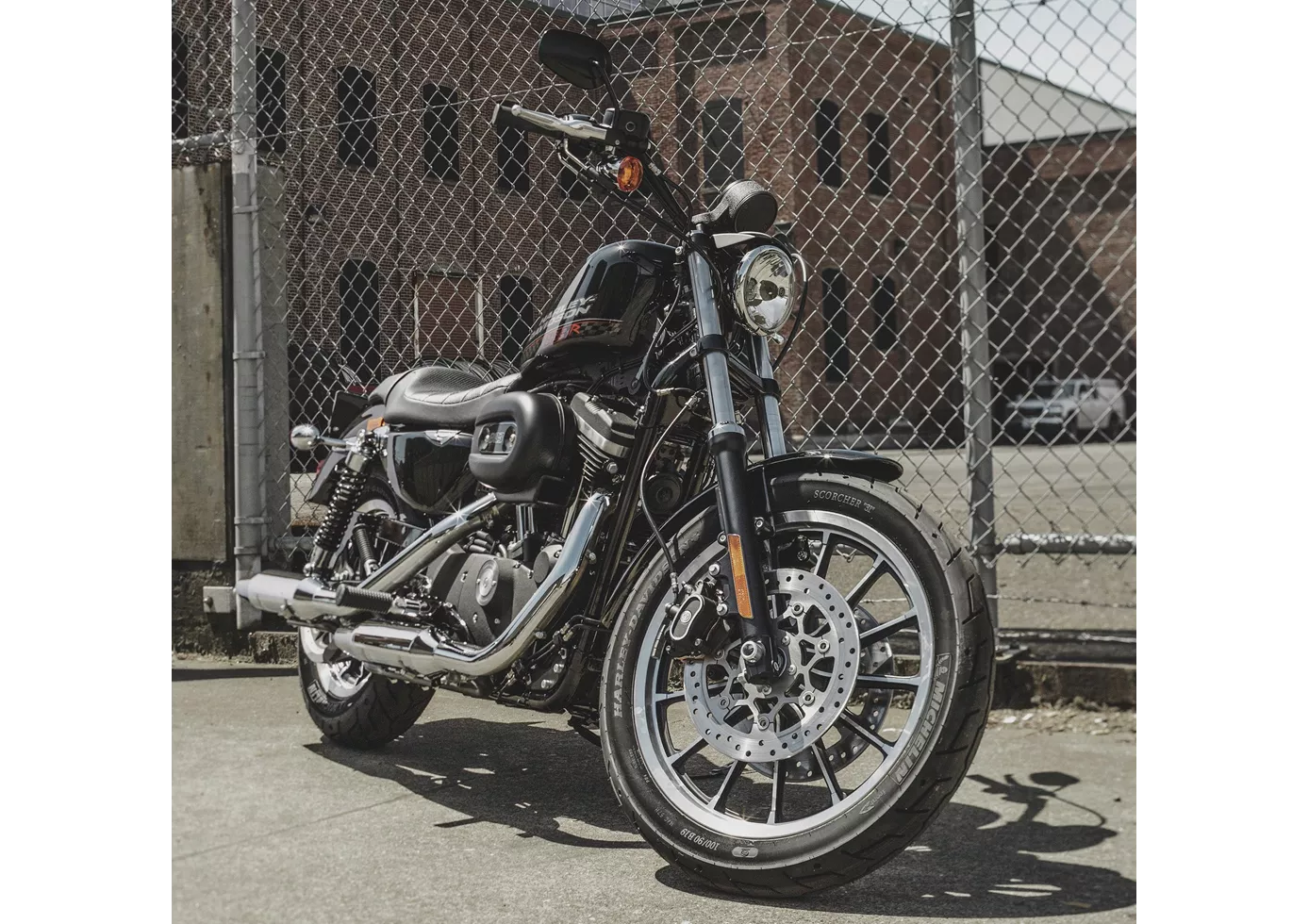

Harley-Davidson Sportster XL 883 R Roadster 2015

Triumph Bonneville 2013

Overview - Harley-Davidson Sportster XL 883 R Roadster 2015 vs Triumph Bonneville 2013

Harley-Davidson Sportster XL 883 R Roadster 2015

Triumph Bonneville 2013

Technical Specifications Harley-Davidson Sportster XL 883 R Roadster 2015 compared to Triumph Bonneville 2013

Harley-Davidson Sportster XL 883 R Roadster 2015

Triumph Bonneville 2013

Harley-Davidson Sportster XL 883 R Roadster 2015

Triumph Bonneville 2013

Engine and Drive Train

Bore	Bore	76.2 mm	Bore	90 mm
Stroke	Stroke	96.8 mm	Stroke	68 mm
Engine power	Engine power	53 HP	Engine power	68 HP
Rpm at Max. Power	Rpm at Max. Power	5,750 rpm	Rpm at Max. Power	7,500 rpm
Torque	Torque	70 Nm	Torque	68 Nm
Rpm at Torque	Rpm at Torque	3,750 rpm	Rpm at Torque	5,800 rpm
Compression Ratio	Compression Ratio	9	Compression Ratio	9.2
Clutch Type	Clutch Type	Multiplate in oil-bath	Clutch Type	Multiplate in oil-bath
Transmission	Transmission	Belt	Transmission	Chain
Number of gears	Number of gears	5	Number of gears	5
Valves	Valves	OHV	Valves	DOHC
Cooling	Cooling	Air	Cooling	Air
Displacement	Displacement	883 ccm	Displacement	865 ccm

Suspension Front

Front suspension	Front suspension	Telescopic fork	Front suspension	Telescopic fork

Chassis

Frame	Frame	Steel	Frame	Steel

Brakes Front

Piston	Piston	Double piston	Piston	Double piston

Brakes Rear

Type	Type	Disc	Type	Disc
Piston	Piston	Double piston	Piston	Double piston
Shock mount	Shock mount	Floating caliper	Shock mount	Floating caliper

Dimensions and Weights

Front tyre width	Front tyre width	100 mm	Front tyre width	110 mm
Front tyre height	Front tyre height	90 %	Front tyre height	70 %
Front tyre diameter	Front tyre diameter	19 inch	Front tyre diameter	17 inch
Rear tyre width	Rear tyre width	150 mm	Rear tyre width	130 mm
Rear tyre height	Rear tyre height	80 %	Rear tyre height	80 %
Rear tyre diameter	Rear tyre diameter	16 inch	Rear tyre diameter	17 inch
Length	Length	2,245 mm	Length	2,115 mm
Width	Width	930 mm	Width	790 mm
Height	Height	1,150 mm	Height	1,130 mm
Wheelbase	Wheelbase	1,520 mm	Wheelbase	1,490 mm
Seat Height	Seat Height	740 mm	Seat Height	740 mm
Fuel Tank Capacity	Fuel Tank Capacity	12.5 l	Fuel Tank Capacity	16 l
License compliancy	License compliancy	A	License compliancy	A

Pros and Cons in comparison

Harley-Davidson Sportster XL 883 R Roadster 2015

Unfortunately, our editors did not test this model.

Triumph Bonneville 2013

Compared to the other classic Triumph models, the Bonneville is the fastest bike. The Scrambler, for example, offers less reserves because of the tyres alone, and the Speedmaster has even less lean angle clearance due to its design. However, the Bonnie is a fully-fledged and versatile motorbike with which you can experience many great tours.

Comfort offered

flawless engine tuning

clean throttle response

Restricted lean angle clearance

suspension elements.
