Honda SH Mode 125 2017 vs. Honda ADV350 2022

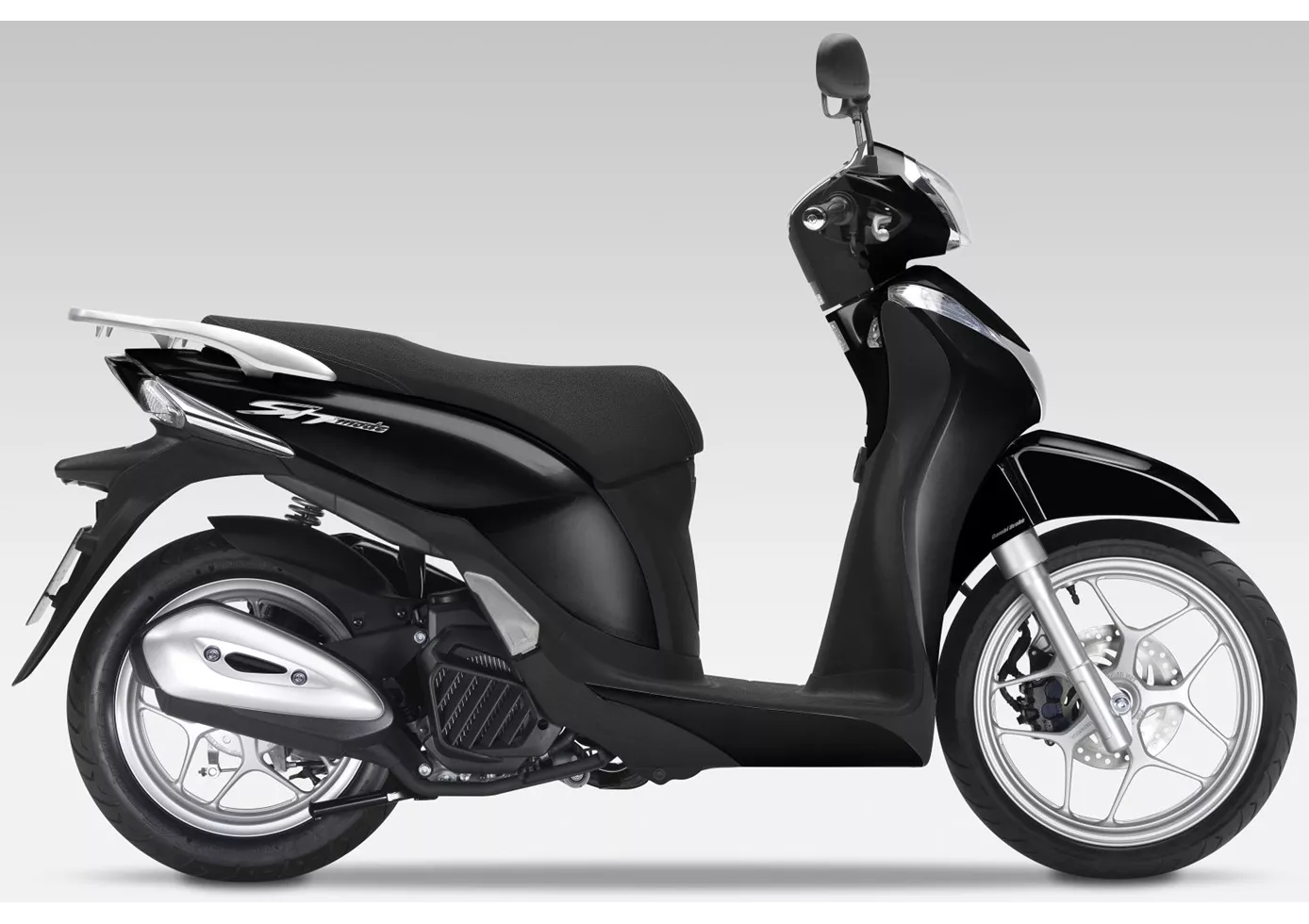

Honda SH Mode 125 2017

Honda ADV350 2022

Overview - Honda SH Mode 125 2017 vs Honda ADV350 2022

Honda SH Mode 125 2017

Honda ADV350 2022

Technical Specifications Honda SH Mode 125 2017 compared to Honda ADV350 2022

Honda SH Mode 125 2017

Honda ADV350 2022

Honda SH Mode 125 2017

Honda ADV350 2022

Engine and Drive Train

Bore	Bore	52.4 mm	Bore	77 mm
Stroke	Stroke	57.9 mm	Stroke	70.81 mm
Engine power	Engine power	11.4 HP	Engine power	29 HP
Rpm at Max. Power	Rpm at Max. Power	8,500 rpm	Rpm at Max. Power	7,500 rpm
Torque	Torque	12 Nm	Torque	31.5 Nm
Rpm at Torque	Rpm at Torque	5,000 rpm	Rpm at Torque	5,250 rpm
Compression Ratio	Compression Ratio	11	Compression Ratio	10.5
Starter	Starter	Electric	Starter	Electric
Clutch Type	Clutch Type	Centrifugal force	Clutch Type	Centrifugal force
Ignition	Ignition	Digital, Transistor	Ignition	Digital, Transistor
Transmission	Transmission	Belt	Transmission	Belt
Transmission Type	Transmission Type	Variomatic	Transmission Type	Variomatic
Cylinders	Cylinders	1	Cylinders	1
Strokes	Strokes	4-Stroke	Strokes	4-Stroke
Cooling	Cooling	liquid	Cooling	liquid
Displacement	Displacement	125 ccm	Displacement	330 ccm

Suspension Rear

Suspension	Suspension	Unit Swing	Suspension	Unit Swing

Chassis

Frame	Frame	Steel	Frame	Steel

Brakes Front

Piston	Piston	Three pistons	Piston	Double piston

Brakes Rear

Type	Type	Drum	Type	Disc

Dimensions and Weights

Front tyre width	Front tyre width	80 mm	Front tyre width	120 mm
Front tyre height	Front tyre height	90 %	Front tyre height	70 %
Front tyre diameter	Front tyre diameter	16 inch	Front tyre diameter	15 inch
Rear tyre width	Rear tyre width	100 mm	Rear tyre width	140 mm
Rear tyre height	Rear tyre height	90 %	Rear tyre height	70 %
Rear tyre diameter	Rear tyre diameter	14 inch	Rear tyre diameter	14 inch
Length	Length	1,930 mm	Length	2,200 mm
Width	Width	665 mm	Width	895 mm
Height	Height	1,105 mm	Height	1,295 mm
Wheelbase	Wheelbase	1,305 mm	Wheelbase	1,520 mm
Seat Height	Seat Height	765 mm	Seat Height	795 mm
Fuel Tank Capacity	Fuel Tank Capacity	5.5 l	Fuel Tank Capacity	11.7 l
License compliancy	License compliancy	A1	License compliancy	A2

Pros and Cons in comparison

Honda SH Mode 125 2017

Unfortunately, our editors did not test this model.

Honda ADV350 2022

When a new model is based on an already known vehicle, a direct comparison is immanent. With the new ADV350, Honda has shown that it has managed to put a new concept on its feet. Thanks to high-quality chassis components and a driving-friendly seating position, the mid-range scooter is surprisingly fun and agile to ride through everyday life and even invites you to take a short after-work ride on the country road. Storage space and comfort are a given - if you are looking for an extroverted, but at the same time charming companion for everyday life, you should take a look at the new Honda ADV350!

lively engine

high-quality chassis

comfortable seating position

agile and safe handling

good equipment

plenty of storage space

eye-catching appearance

sensible accessories

Windshield not adjustable while riding

little wind protection for the legs

clearly defined pressure point of the brakes desirable
